10118084-401A04LF

Headers, Male Pins Overview

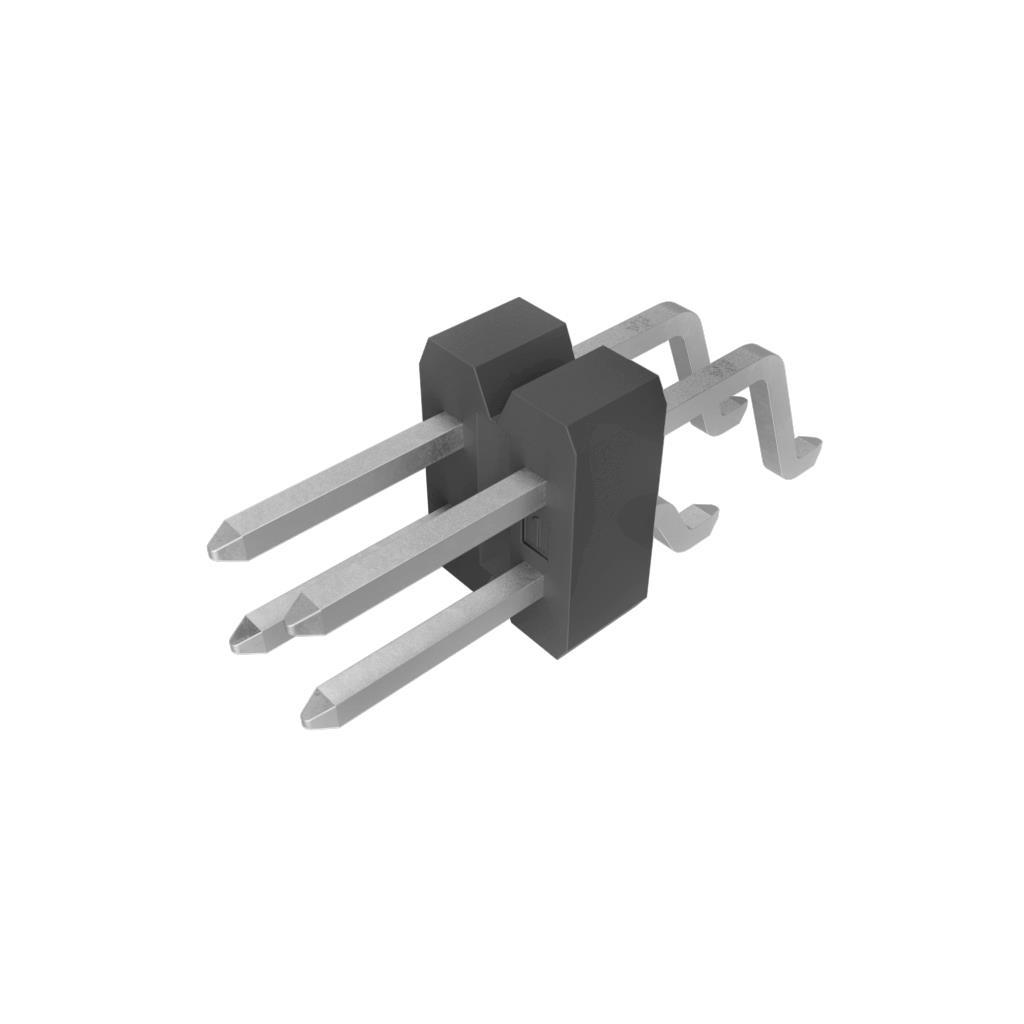

The Amphenol ICC (FCI) part number 10118084-401A04LF is a modular jack connector belonging to the BergStik® series. It features a surface mount, right-angle termination style with four positions and a 2.54mm pitch. The component utilizes phosphor bronze contacts with gold plating for reliable signal transmission. Designed for board-to-board applications, it offers a compact profile suitable for space-constrained environments.

Headers, Male Pins Feature Summary

• Surface mount right-angle design facilitates efficient PCB layout in dense assemblies
• Gold-plated phosphor bronze contacts ensure stable electrical performance and corrosion resistance
• BergStik® series construction provides robust mechanical stability for interconnect needs

Headers, Male Pins Applications

• Mobile computing devices such as laptops and ultrabooks
• Smartphones and tablet computers
• Wearable electronic devices requiring compact interconnects

Headers, Male Pins Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact termination and housing variations. Ensure compatibility with automated pick-and-place equipment due to the surface mount configuration. Cross-reference the RoHS compliance status with current regulatory requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle modular jack is required for high-density circuit boards. Consider the 2.54mm pitch for standard spacing requirements. Evaluate the surface mount orientation against available board real estate to optimize assembly efficiency and minimize vertical height constraints.

Headers, Male Pins Part Context

This connector belongs to the BergStik® family of interconnect solutions from Amphenol ICC (FCI). The series is engineered for mobile consumer electronics, offering miniaturized designs that support high-volume production. It addresses the industry demand for reliable, space-saving connections in portable devices.

Headers, Male Pins Replacement Considerations

Consult official substitution lists for verified equivalents. Generic alternatives may not match the precise right-angle geometry or contact material specifications required for this application.
