10118084-402A04LF

Headers, Male Pins Overview

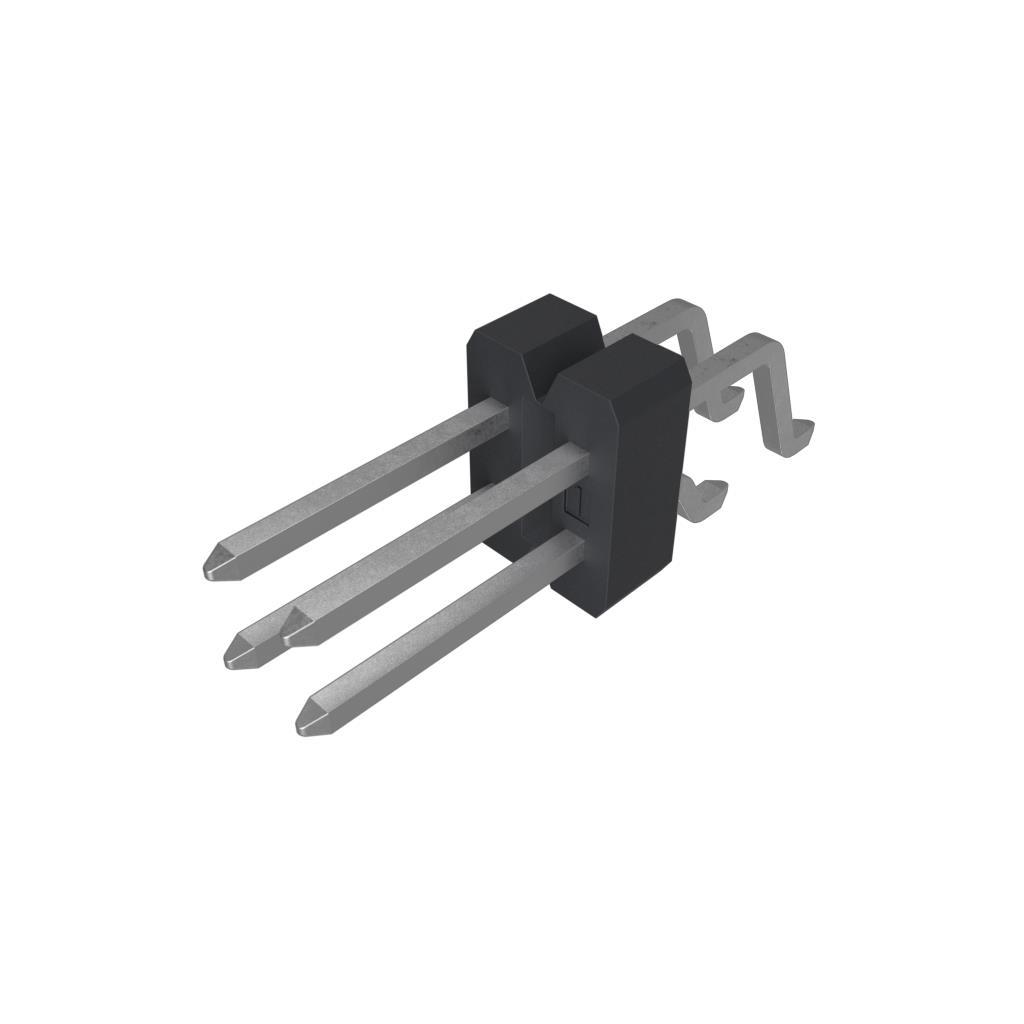

The Amphenol ICC (FCI) 10118084-402A04LF is a surface mount right-angle header connector from the BERGSTIK® series. It features a 4-position configuration with a 0.100" (2.54mm) pitch and 0.100" row spacing. The connector utilizes phosphor bronze contacts with GXT™ gold plating for mating surfaces and tin plating for tails. Designed for board-to-board applications, it supports a current rating of 3A per contact and operates within a temperature range of -65°C to +125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount design for compact vertical integration
• BERGSTIK® series construction with push-pull locking mechanism
• Gold-plated mating contacts ensuring reliable signal transmission

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• High-density circuit board layouts requiring vertical orientation
• Industrial control modules and communication equipment

Headers, Male Pins Procurement Notes

Verify the specific suffix '402A04LF' against official Amphenol documentation to confirm right-angle orientation and pin count. Ensure compatibility with automated pick-and-place equipment due to the surface mount package type. Cross-reference the GXT™ gold plating specification for critical signal integrity requirements.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for space-constrained designs. The 2.54mm pitch ensures broad compatibility with standard PCB footprints. Consider the 3A current rating and thermal performance limits when designing for high-power or high-temperature environments.

Headers, Male Pins Part Context

This part belongs to the BERGSTIK® family of rectangular connectors, known for their robust mechanical stability and standardized dimensions. It serves as a male header counterpart to compatible female receptacles, facilitating secure electrical connections in modular system architectures.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 4-position count, 2.54mm pitch, and right-angle SMD form factor. Verify that alternative headers maintain identical contact material specifications and locking mechanisms to ensure mechanical interchangeability.
