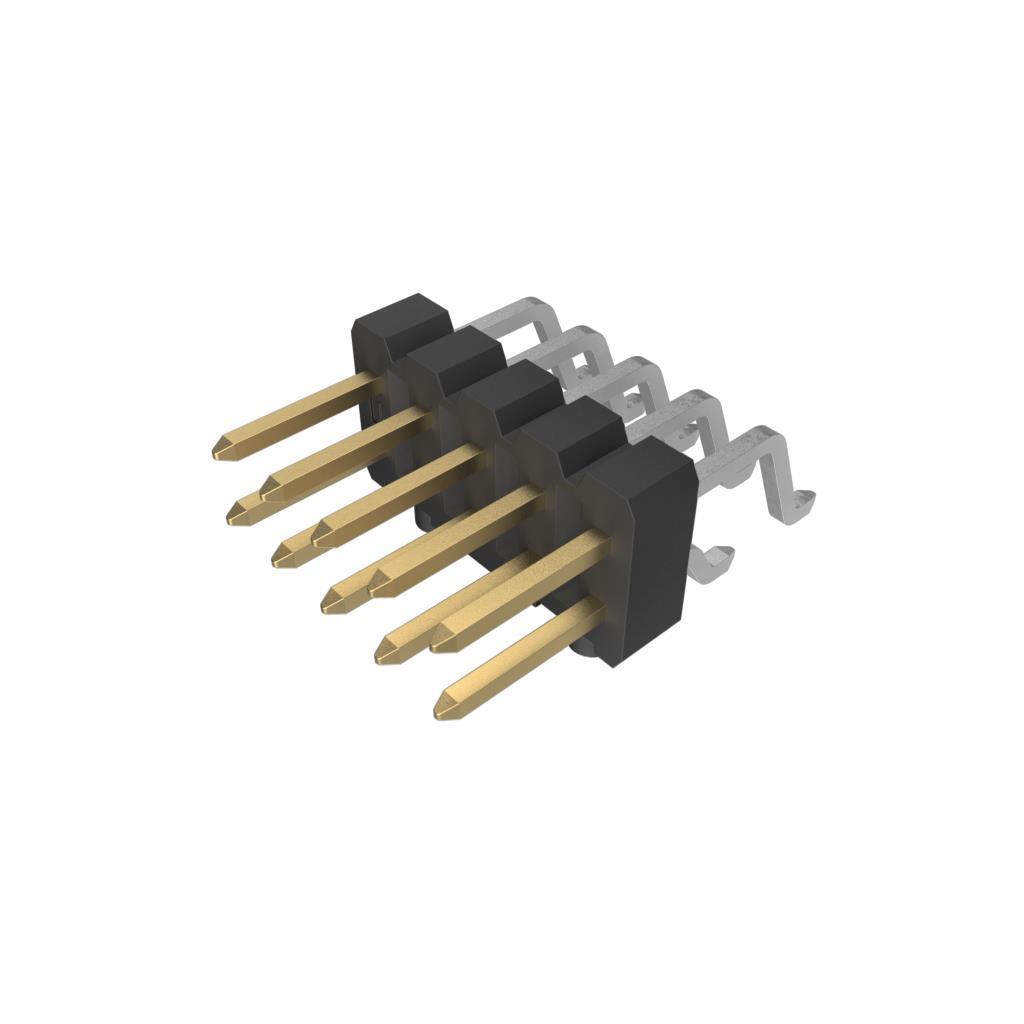

10118085-101-10LF

10118085-101-10LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is BERGSTIK. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10118085-101-10LF

• Description：BERGSTIK
• Series：BERGSTIK®
• Mfr：Amphenol ICC (FCI)
• Package：Bag
• Connector Type：Header
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：10
• Number of Rows：2
• Row Spacing - Mating：0.100" (2.54mm)
• Number of Positions Loaded：All
• Style：Board to Board or Cable
• Shrouding：Unshrouded
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.230" (5.84mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.250" (6.35mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：UL94 V-0
• Insulation Color：Black
• Current Rating (Amps)：-
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 10118085-101-10LF
