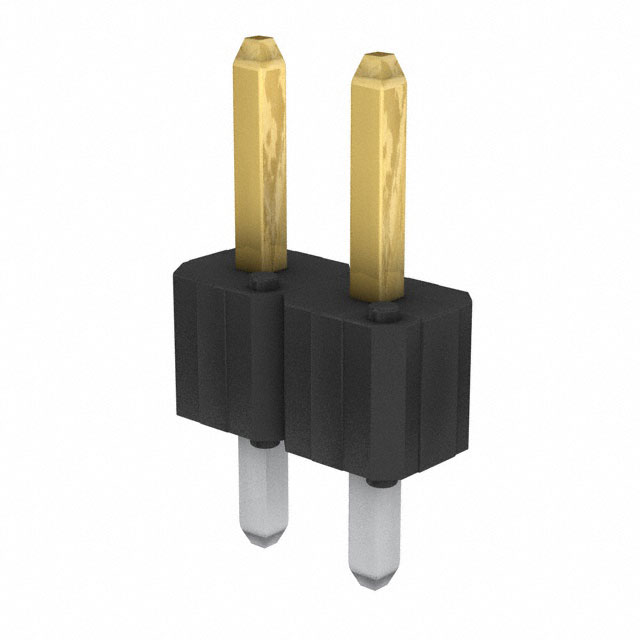

Description：CONN HEADER VERT 2POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:2f9275c69ac1 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10118615-202004LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 2POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10118615-202004LF

Description：CONN HEADER VERT 2POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.152" (3.86mm)
Contact Length - Post：0.098" (2.50mm)
Overall Contact Length：0.350" (8.89mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold or Gold, GXT™
Contact Finish Thickness - Mating：15.0µin (0.38µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-65°C ~ 130°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10118615-202004LF

10118615-202004LF

Headers, Male Pins Overview

The 10118615-202004LF is a vertical header connector manufactured by Amphenol ICC (FCI). It features a 2-position configuration with a 0.100-inch (2.54mm) centerline pitch. Designed for through-hole mounting, this component belongs to the Bergsik® Straddle Mount Header series. The connector utilizes a straight pin arrangement suitable for standard PCB assembly processes.

Headers, Male Pins Feature Summary

Vertical orientation for direct board insertion
Straddle mount design for secure PCB attachment
Through-hole termination method

Headers, Male Pins Applications

General electronic circuit interconnections
Industrial control system wiring
Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific suffix and lead time directly with Amphenol or authorized distributors before ordering. Confirm that the straddle mount footprint matches your PCB layout requirements. Ensure compliance with RoHS standards as indicated by the LF designation. Request official datasheets for precise mechanical dimensions and plating specifications prior to final procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, vertically oriented header is required for signal or power distribution. The 2.54mm pitch ensures compatibility with standard wire harnesses and jumper cables. Consider the straddle mount feature if enhanced mechanical stability against vibration is necessary compared to standard single-row headers.

Headers, Male Pins Part Context

This part belongs to the Bergsik® Straddle Mount Header family from Amphenol ICC (FCI). These connectors are engineered for reliable electrical connections in various commercial and industrial applications. The series is known for its robust construction and ease of automated assembly, providing a cost-effective solution for board-to-wire interconnects.
