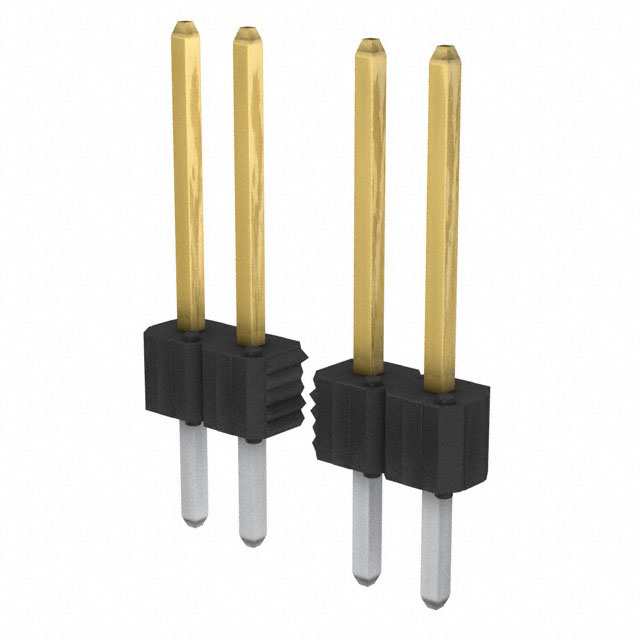

10118615-208006LF

10118615-208006LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 8POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10118615-208006LF

• Description：CONN HEADER VERT 8POS 2.54MM
• Series：BERGSTIK® II
• Mfr：Amphenol ICC (FCI)
• Package：Bag
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：8
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.374" (9.50mm)
• Contact Length - Post：0.157" (4.00mm)
• Overall Contact Length：0.631" (16.03mm)
• Insulation Height：0.100" (2.54mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：15.0µin (0.38µm)
• Contact Finish - Post：-
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-65°C ~ 130°C
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：-
• Current Rating (Amps)：3A
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 10118615-208006LF
