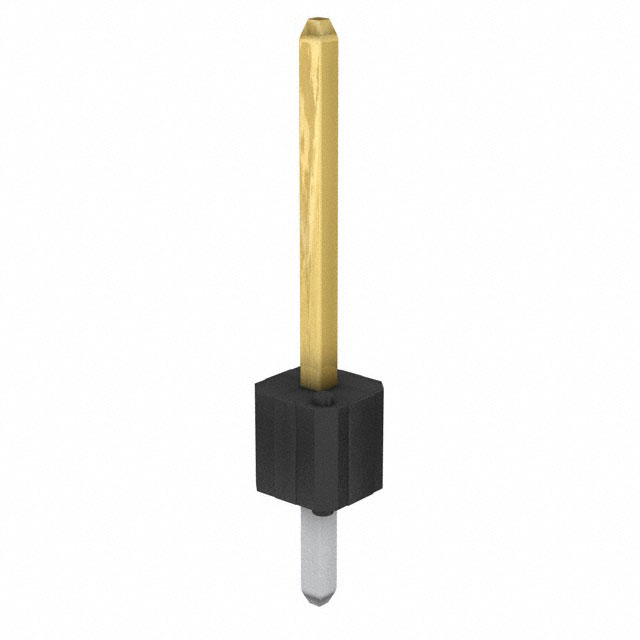

10118615-501003LF

Description：CONN HEADER VERT 1POS
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:718f0beb8e53 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10118615-501003LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 1POS. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10118615-501003LF

Description：CONN HEADER VERT 1POS
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：-
Number of Positions：1
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.335" (8.51mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.555" (14.10mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-65°C ~ 130°C
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：-
Current Rating (Amps)：3A
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10118615-501003LF

10118615-501003LF

Headers, Male Pins Overview

The Amphenol ICC (FCI) part number 10118615-501003LF is a Bergstik II series vertical header connector. It features a single position configuration with male pin contacts. The component utilizes a through-hole termination method for secure board mounting. Contact surfaces are finished with gold plating to ensure reliable electrical conductivity and corrosion resistance. The connector is designed for standard PCB assembly applications requiring compact, high-density interconnect solutions.

Headers, Male Pins Feature Summary

Vertical header design for space-efficient board stacking
Gold-plated male pin contacts for signal integrity
Through-hole termination for robust mechanical fixation

Headers, Male Pins Applications

General-purpose electronic circuit interconnections
Compact device internal wiring harnesses
Single-pin power or signal routing on PCBs

Headers, Male Pins Procurement Notes

Verify the exact contact count and pitch specifications against the official datasheet before integration. Confirm that the vertical orientation matches the assembly requirements. Ensure compatibility with mating receptacles from the same Bergstik II family. Check for any specific handling instructions regarding the gold plating during soldering processes.

Headers, Male Pins Selection Notes

Select this component when a single-position vertical connection is required. Consider the Bergstik II series for its established reliability in low-pin-count applications. Evaluate the through-hole mounting style against surface-mount alternatives based on mechanical stress requirements. Verify that the gold contact finish meets the environmental durability needs of the target application.

Headers, Male Pins Part Context

This part belongs to the Bergstik II series, a widely used line of board-to-board and wire-to-board connectors by Amphenol ICC. The series is known for providing versatile interconnect options in various configurations. This specific model represents a minimalistic, single-pin variant within that broader ecosystem, focusing on essential connectivity without complex multi-pin arrangements.
