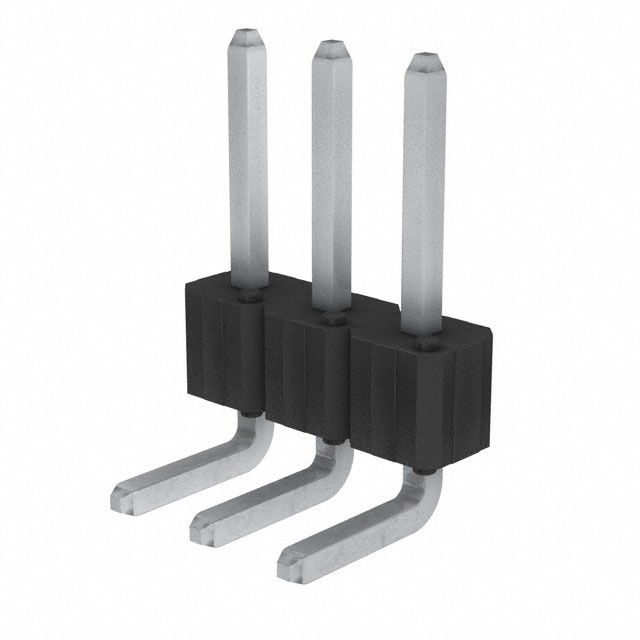

10118650-403005LF

10118650-403005LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER R/A 3POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10118650-403005LF

• Description：CONN HEADER R/A 3POS 2.54MM
• Series：BERGSTIK® II
• Mfr：Amphenol ICC (FCI)
• Package：Box,Bag
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：3
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Through Hole, Right Angle
• Termination：Kinked Pin, Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.150" (3.81mm)
• Contact Length - Post：0.150" (3.81mm)
• Overall Contact Length：-
• Insulation Height：0.095" (2.41mm)
• Contact Shape：Square
• Contact Finish - Mating：Tin
• Contact Finish Thickness - Mating：100.0µin (2.54µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：-
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：3A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 10118650-403005LF
