10118884-405001LF

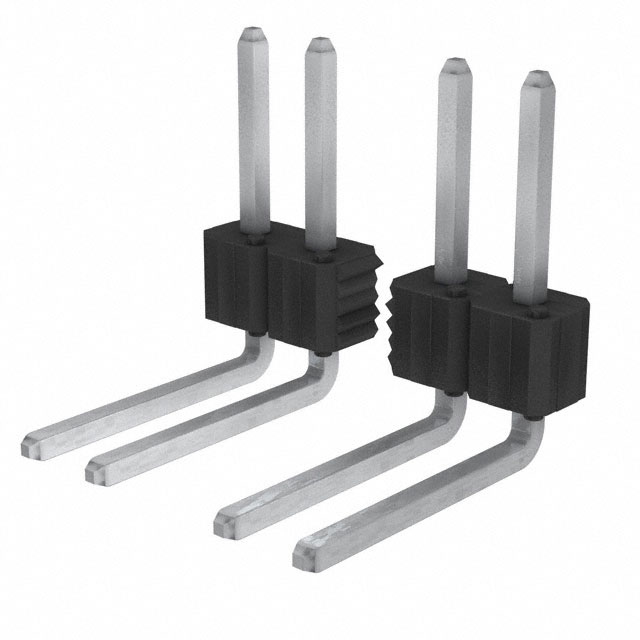

Description：CONN HEADER R/A 5POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:72527d83896b Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10118884-405001LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER R/A 5POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10118884-405001LF

Description：CONN HEADER R/A 5POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：5
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.295" (7.49mm)
Overall Contact Length：-
Insulation Height：0.095" (2.41mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Phosphor Bronze
Insulation Material：-
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10118884-405001LF

10118884-405001LF

Headers, Male Pins Overview

The Amphenol ICC (FCI) part number 10118884-405001LF is a rectangular header connector belonging to the BERGSTIK II series. It features a right-angle configuration with five positions and a 2.54mm pitch. The connector utilizes solder termination for board mounting and is unshrouded in design. Constructed with copper alloy contacts, it supports reliable electrical interconnection within standard operating temperature ranges.

Headers, Male Pins Feature Summary

Right-angle header configuration for space-efficient PCB mounting
BERGSTIK II series reliability and durability
Solder termination ensures secure mechanical attachment

Headers, Male Pins Applications

General purpose electronic equipment
Industrial control systems
Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized distributors or direct manufacturer channels. Confirm RoHS compliance status matches project requirements. Ensure storage conditions prevent contact oxidation prior to assembly. Validate pin count and pitch specifications against schematic designs to avoid integration errors during procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle header is required for signal transmission. The 2.54mm spacing accommodates standard wire gauges. Consider the unshrouded design for applications where mating guides are provided externally. Evaluate thermal resistance limits relative to soldering processes and operational environments.

Headers, Male Pins Part Context

This connector is part of the extensive BERGSTIK II portfolio by Amphenol ICC (FCI), a division of Amphenol Corporation. The series is widely recognized for its cost-effective solution in board-to-board and cable-to-board connections. FCI's acquisition by Amphenol has integrated these components into a broader global supply chain network.
