10118966-002LF

Overview

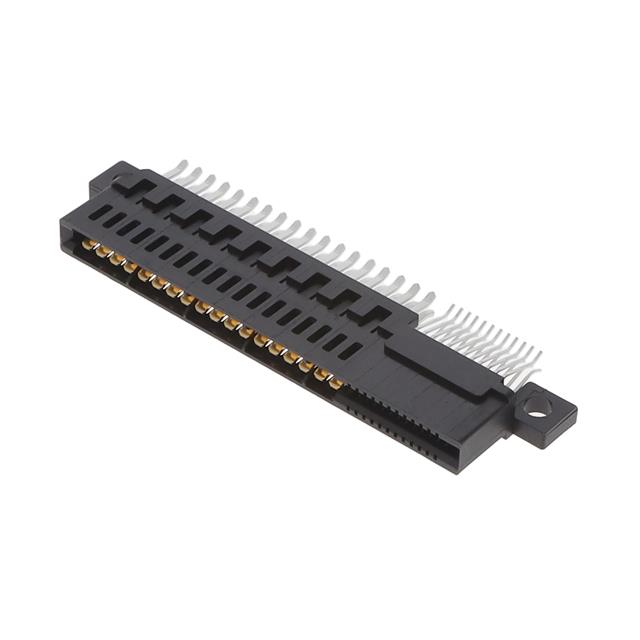

The Amphenol ICC (FCI) 10118966-002LF is a High Power Card Edge (HPCE) connector designed for demanding power distribution applications. It features a dual female configuration with 60 positions, comprising 24 signal and 36 power contacts. The component utilizes stamped-and-formed power contact technology and offers a low profile height of 7.50 mm. It supports straddle mount installation with press-fit termination. The contacts are made of copper alloy with gold or GXT™ plating. The insulator is thermoplastic, rated for operation between -55°C and +105°C, and accommodates a card thickness of 0.062 inches.

Feature Summary

• High power density design utilizing stamped-and-formed power contact technology
• Low profile construction with a height of 7.50 mm
• Dual female configuration supporting both signal and high-current power transmission
• Straddle mount installation style ensuring secure board attachment

Applications

• Next-generation server power distribution systems
• High-density computing hardware requiring robust power delivery
• Industrial equipment with strict space constraints

Procurement Notes

Verify the specific ordering suffix to confirm contact plating options and packaging details. Ensure compatibility with the target card edge thickness and mounting requirements. Confirm lead times as they may vary based on production schedules. Cross-reference the manufacturer datasheet for precise mechanical dimensions and mating force specifications before integration.

Selection Notes

Select this component when high current capacity and low profile are critical. The HPCE series is suitable for applications requiring reliable power distribution in dense environments. Consider the straddle mount style for enhanced stability. Evaluate thermal performance within the specified operating temperature range. Ensure the mating card meets the required thickness specifications for proper engagement.

Part Context

This part belongs to the HPCE series from Amphenol ICC (FCI), focusing on high-power connectivity solutions. The series addresses the growing demand for efficient power delivery in compact electronic designs. It complements standard I/O connectors by providing specialized power handling capabilities. The product line emphasizes reliability and durability in challenging operational conditions.
