10119109-372005LF

Headers, Male Pins Overview

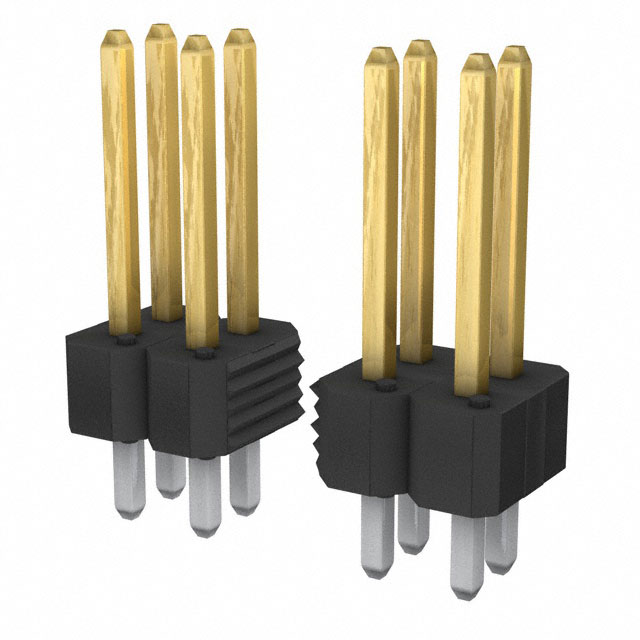

The Amphenol ICC (FCI) part number 10119109-372005LF is a vertical header connector belonging to the 10119109 series. It features a 72-position configuration with a 2.54mm row spacing and a mating contact length of 8.08mm. The component is designed as a breakaway header with male pin contacts, intended for through-hole mounting on printed circuit boards. This specific variant provides reliable signal interconnection capabilities within standard electronic assembly environments.

Headers, Male Pins Feature Summary

• Vertical orientation design facilitates direct board-to-board or cable-to-board connections in compact layouts.
• Breakaway style construction allows for flexible strip lengths during manufacturing and assembly processes.
• Male pin contact configuration ensures secure mating engagement with corresponding female receptacles.

Headers, Male Pins Applications

• General purpose electronic equipment interconnection
• Industrial control system signal routing
• Commercial device internal wiring harnesses

Headers, Male Pins Procurement Notes

Verify the exact pin count and pitch specifications against the target PCB footprint before ordering. Confirm that the vertical height and contact length meet the mechanical clearance requirements of the final assembly. Ensure compatibility with standard through-hole soldering profiles to maintain joint integrity.

Headers, Male Pins Selection Notes

Select this component when a high-density vertical header is required for signal distribution. The 2.54mm pitch is standard for general-purpose applications. Consider the breakaway feature if custom strip lengths are needed for automated insertion or manual assembly workflows.

Headers, Male Pins Part Context

This connector is part of the broader Amphenol ICC (FCI) portfolio, which supplies interconnect solutions for server, storage, and data center applications. The manufacturer, formerly Framatome Connectors International, continues to produce these components under the Amphenol brand, focusing on robust connectivity for demanding industrial and commercial sectors.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 72-pin count, 2.54mm pitch, and vertical header form factor. Verify that alternative manufacturers offer compatible breakaway designs and identical contact plating specifications to ensure electrical and mechanical interchangeability.
