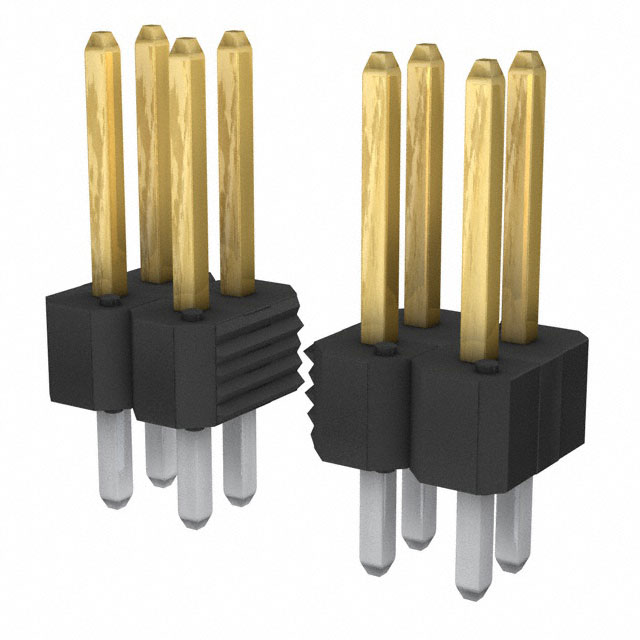

10119109-372008LF

Description：CONN HEADER VERT 72POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:cfe6fa36a7ba Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10119109-372008LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 72POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10119109-372008LF

Description：CONN HEADER VERT 72POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：72
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.255" (6.48mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.475" (12.07mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：50.0µin (1.27µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：-
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10119109-372008LF

10119109-372008LF

Headers, Male Pins Overview

The Amphenol ICC (FCI) part number 10119109-372008LF is a vertical header connector designed for board-to-board applications. It features 72 positions with a 2.54mm pitch, providing reliable signal transmission in compact electronic assemblies. The component utilizes surface mount technology for automated PCB integration and includes gold-plated contacts to ensure low contact resistance and corrosion resistance over repeated mating cycles. This connector is engineered for high-density interconnect requirements in modern computing and communication hardware.

Headers, Male Pins Feature Summary

Vertical orientation design facilitates space-efficient board stacking
Gold-plated contacts ensure durable electrical performance
Surface mount termination supports automated assembly processes

Headers, Male Pins Applications

Server backplanes
Storage system interconnects
Communication network equipment

Headers, Male Pins Procurement Notes

Verify the complete part number including the suffix against official Amphenol ICC documentation to confirm plating specifications and packaging options. Ensure compatibility with standard reflow soldering profiles during procurement planning. Cross-reference the manufacturer's latest datasheet to confirm current availability status and RoHS compliance details before finalizing supply chain agreements.

Headers, Male Pins Selection Notes

Select this component when a high-pin-count vertical header is required for dense signal routing. The 2.54mm pitch offers a balance between pin density and manufacturing ease. Consider the mechanical height constraints of the assembly and verify that the surface mount footprint aligns with the target PCB layout guidelines provided by the manufacturer.

Headers, Male Pins Part Context

This connector belongs to the Amphenol ICC (formerly FCI) portfolio, which specializes in interconnect solutions for data centers and enterprise infrastructure. The product line focuses on delivering robust connectivity for high-speed data transfer applications. As part of the broader Amphenol ecosystem, it adheres to strict quality standards for industrial and commercial electronics.
