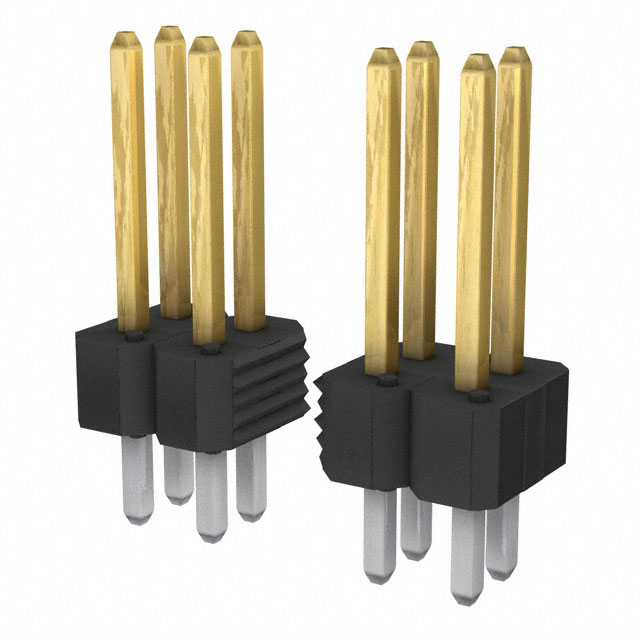

10119109-372010LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 72POS 2.54MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for 10119109-372010LF
- Description：CONN HEADER VERT 72POS 2.54MM
- Series：BERGSTIK® II
- Mfr：Amphenol ICC (FCI)
- Package：Bag
- Connector Type：Header, Breakaway
- Contact Type：Male Pin
- Pitch - Mating：0.100" (2.54mm)
- Number of Positions：72
- Number of Rows：2
- Row Spacing - Mating：0.100" (2.54mm)
- Number of Positions Loaded：All
- Style：Board to Board
- Shrouding：Unshrouded
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.318" (8.08mm)
- Contact Length - Post：0.120" (3.05mm)
- Overall Contact Length：0.538" (13.67mm)
- Insulation Height：0.100" (2.54mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：50.0µin (1.27µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：-
- Features：-
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Headers, Male Pins datasheet and documents for 10119109-372010LF
Headers, Male Pins Overview
The Amphenol ICC (FCI) part number 10119109-372010LF is a vertical board-to-board header connector belonging to the BERGSTIK II series. It features a 2.54 mm pitch and provides 72 positions arranged in two rows. The component utilizes surface mount termination for secure PCB attachment. Designed for industrial applications, it ensures reliable electrical connectivity within high-performance interconnect systems.
Headers, Male Pins Feature Summary
- Vertical board-to-board header configuration
- BERGSTIK II series construction
- Surface mount termination style
Headers, Male Pins Applications
- Industrial automation equipment
- Factory automation systems
- Smart manufacturing (IIoT) devices
Headers, Male Pins Procurement Notes
Verify the specific manufacturer part number against official Amphenol documentation to confirm current availability status. Ensure that the selected component matches the required 2.54 mm pitch and 72-position specifications for your design. Cross-reference datasheets to validate compatibility with intended surface mount assembly processes.
Headers, Male Pins Selection Notes
Select this component when a vertical board-to-board connection is required for industrial-grade applications. The BERGSTIK II series offers robust performance suitable for demanding environments. Confirm that the 2.54 mm pitch aligns with existing PCB layout constraints and mating connector requirements.
Headers, Male Pins Part Context
This connector belongs to the BERGSTIK II family, designed for versatile board-to-board interconnections. The series supports various pin counts and configurations, providing flexibility for diverse electronic designs. It is engineered to meet the reliability standards expected in industrial and commercial electronics sectors.
Headers, Male Pins Replacement Considerations
Direct substitute part numbers are not publicly confirmed in available documentation. Verify compatibility with alternative components by matching pitch, position count, and mounting style before implementation.
