10119109-504022LF

$0.38

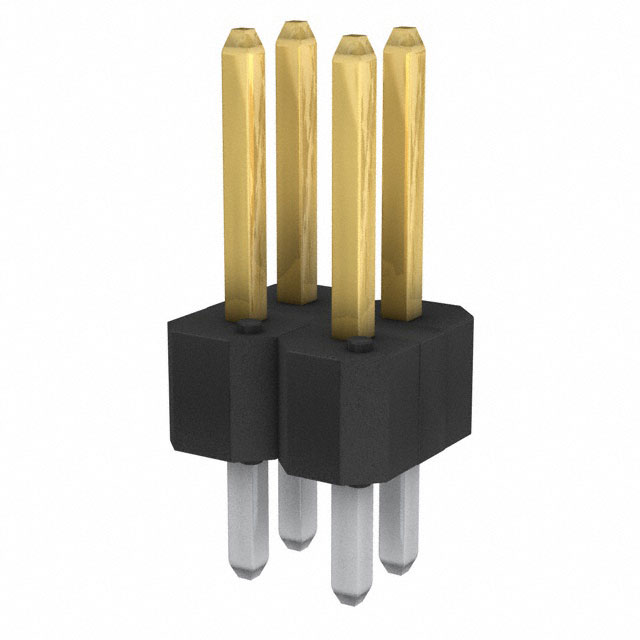

Description：CONN HEADER VERT 4POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:fa453329e1c9 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10119109-504022LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 4POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10119109-504022LF

Description：CONN HEADER VERT 4POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：4
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：0.120" (3.05mm)
Overall Contact Length：0.450" (11.43mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：-
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10119109-504022LF

10119109-504022LF

Headers, Male Pins Overview

The 10119109-504022LF is a Bergstik II series header connector manufactured by Amphenol ICC (FCI). It features 4 positions with a 0.100 inch (2.54 mm) pitch. The component utilizes through-hole termination and square pin contacts. Designed for board-to-board applications, it includes push-pull locking functionality to secure mating connections.

Headers, Male Pins Feature Summary

Push-pull locking mechanism for secure connection retention
Through-hole termination for reliable PCB mounting
Square contact geometry for consistent alignment

Headers, Male Pins Applications

Board-to-board interconnect systems
Industrial instrumentation modules
Factory automation control units

Headers, Male Pins Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current availability status. Check datasheets for RoHS compliance and MSL ratings. Ensure compatibility with mating headers regarding pitch and locking style before procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, four-position through-hole header is required. The 2.54mm pitch suits standard spacing requirements. Consider the push-pull feature if vibration resistance or secure mating is critical for the assembly environment.

Headers, Male Pins Part Context

This connector belongs to the Bergstik II product line, which provides robust interconnect solutions. The series is characterized by its durability and standardized dimensions, making it suitable for various electronic assemblies requiring reliable signal transmission.
