10119109-516028LF

$1.90

Description：CONN HEADER VERT 16POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:49f27c780d0c Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10119109-516028LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 16POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10119109-516028LF

Description：CONN HEADER VERT 16POS 2.54MM
Series：BERGSTIK® II
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：16
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.430" (10.92mm)
Contact Length - Post：0.200" (5.08mm)
Overall Contact Length：0.730" (18.54mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：-
Contact Material：Copper Alloy
Insulation Material：-
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10119109-516028LF

10119109-516028LF

Headers, Male Pins Overview

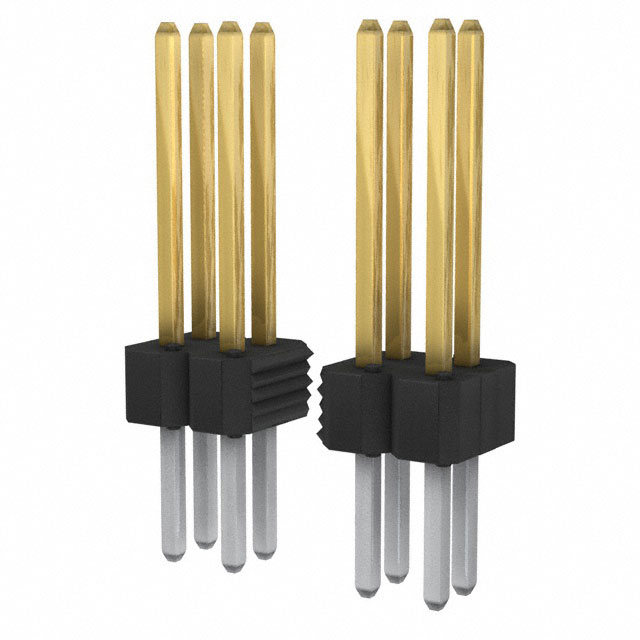

The Amphenol ICC (FCI) 10119109-516028LF is a BergStik unshrouded header connector featuring a 2.54mm pitch and 16 positions. Designed for through-hole vertical mounting, it utilizes a breakaway design to allow users to cut or break the strip to length for specific application profiles. The component serves as an interconnect solution for board-to-board, mezzanine, header and wire housing, power-to-board, and memory card applications.

Headers, Male Pins Feature Summary

BergStik series with breakaway design for customizable length
Unshrouded vertical header configuration
Through-hole termination method

Headers, Male Pins Applications

Board-to-board interconnects
Mezzanine connections
Header and wire housing assemblies
Power-to-board interfaces
Memory card interconnect solutions

Headers, Male Pins Procurement Notes

Verify the manufacturer part number 10119109-516028LF against official Amphenol ICC documentation to confirm current availability status. Ensure that the selected supplier provides genuine components with traceable origin. Cross-reference the datasheet specifications regarding the breakaway header design and pin count to match system requirements before procurement.

Headers, Male Pins Selection Notes

Select this component when a customizable, breakaway unshrouded header is required for vertical mounting. It is suitable for applications needing board-to-board, mezzanine, or power-to-board interconnects. Consider the 2.54mm pitch and 16-position layout to ensure compatibility with mating connectors and PCB footprint constraints.

Headers, Male Pins Part Context

This component belongs to the BergStik series by Amphenol ICC (FCI), known for providing versatile interconnect solutions. The product line supports various configurations including board-to-board and power-to-board applications. The 10119109-516028LF specifically offers a 16-position, 2.54mm pitch unshrouded header with a breakaway feature for flexible assembly integration.
