10119110-504001LF

Headers, Male Pins Overview

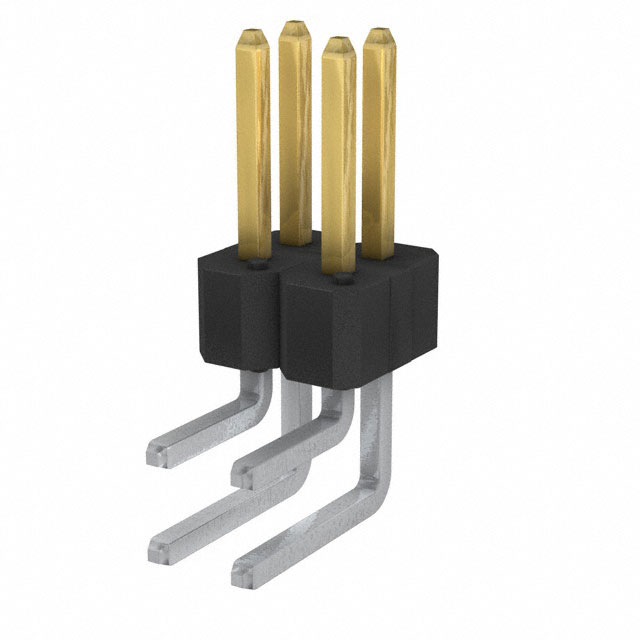

The 10119110-504001LF is a right-angle pin header connector manufactured by Amphenol ICC (FCI). It features a 4-position configuration with a 2.54mm pitch, designed for surface-mount or through-hole applications depending on the specific variant requirements within the series. The component utilizes a rectangular housing to provide reliable electrical interconnection in compact electronic assemblies.

Headers, Male Pins Feature Summary

• Right-angle orientation for space-efficient board layout
• 2.54mm pitch spacing for standard compatibility
• Four-position contact arrangement

Headers, Male Pins Applications

• General-purpose electronic interconnections
• Compact circuit board assembly
• Signal routing in consumer electronics

Headers, Male Pins Procurement Notes

Verify the exact termination style and mounting method against the official datasheet, as generic descriptions may not specify surface-mount versus through-hole details. Confirm RoHS compliance status and check for any product change notices or obsolescence alerts prior to finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for four signal lines. Ensure the mating connector matches the 2.54mm pitch specification. Consider mechanical stability requirements and verify that the housing material meets the necessary flammability ratings for the target application environment.

Headers, Male Pins Part Context

This part belongs to the Amphenol ICC (FCI) pin header family, which provides standardized interconnect solutions. These connectors are engineered for high-volume manufacturing and offer consistent performance across various industrial and commercial electronic devices requiring reliable signal transmission.

Headers, Male Pins Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing footprints and mating hardware before considering alternative sources.
