10119332-101A04LF

Headers, Male Pins Overview

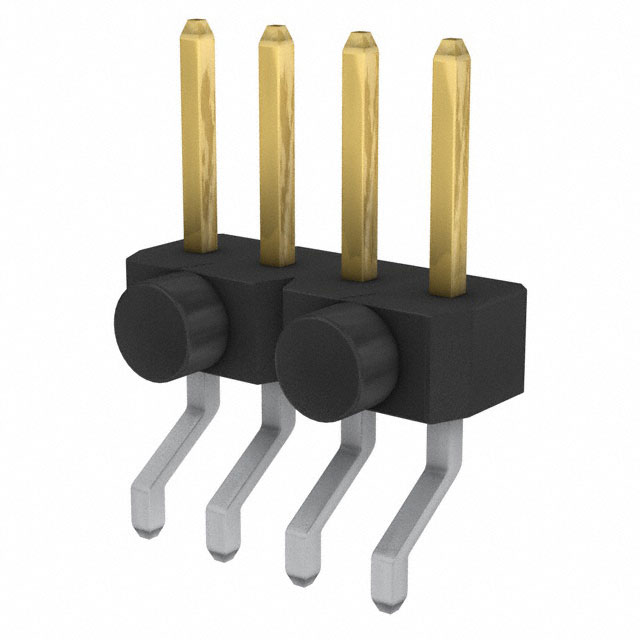

The Amphenol ICC (FCI) part number 10119332-101A04LF is a surface mount board-to-board header connector from the Bergstik series. It features an unshrouded, right-angle single row design with four positions and a 2.54mm pitch. The contacts are gold-plated copper alloy, rated for 3A per contact at 1.5kV insulation resistance. Operating temperatures range from -65°C to 125°C.

Headers, Male Pins Feature Summary

• Right-angle surface mount configuration for compact PCB integration
• Unshrouded single-row header design with 2.54mm spacing
• Gold-plated contacts ensuring reliable signal transmission

Headers, Male Pins Applications

• High-density electronic assemblies
• Consumer electronics devices
• Industrial control systems

Headers, Male Pins Procurement Notes

Verify the specific suffix '101A04LF' against official manufacturer documentation to confirm exact plating thickness and housing material specifications. Ensure compatibility with mating receptacles before procurement. Confirm RoHS compliance status through current datasheets as regulatory requirements may evolve over time.

Headers, Male Pins Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The 2.54mm pitch offers standard spacing compatibility. Verify that the unshrouded design aligns with mechanical constraints and does not require additional shielding or alignment features provided by shrouded alternatives.

Headers, Male Pins Part Context

This connector belongs to the Bergstik family of board-to-board interconnects. It provides a cost-effective solution for vertical stacking applications where minimal height is critical. The series supports various pin counts and configurations to accommodate diverse circuit density requirements across multiple product lines.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54mm pitch, right-angle orientation, and four-position count. Verify that alternative headers maintain identical current ratings and thermal performance characteristics to ensure system reliability without redesigning the PCB footprint.
