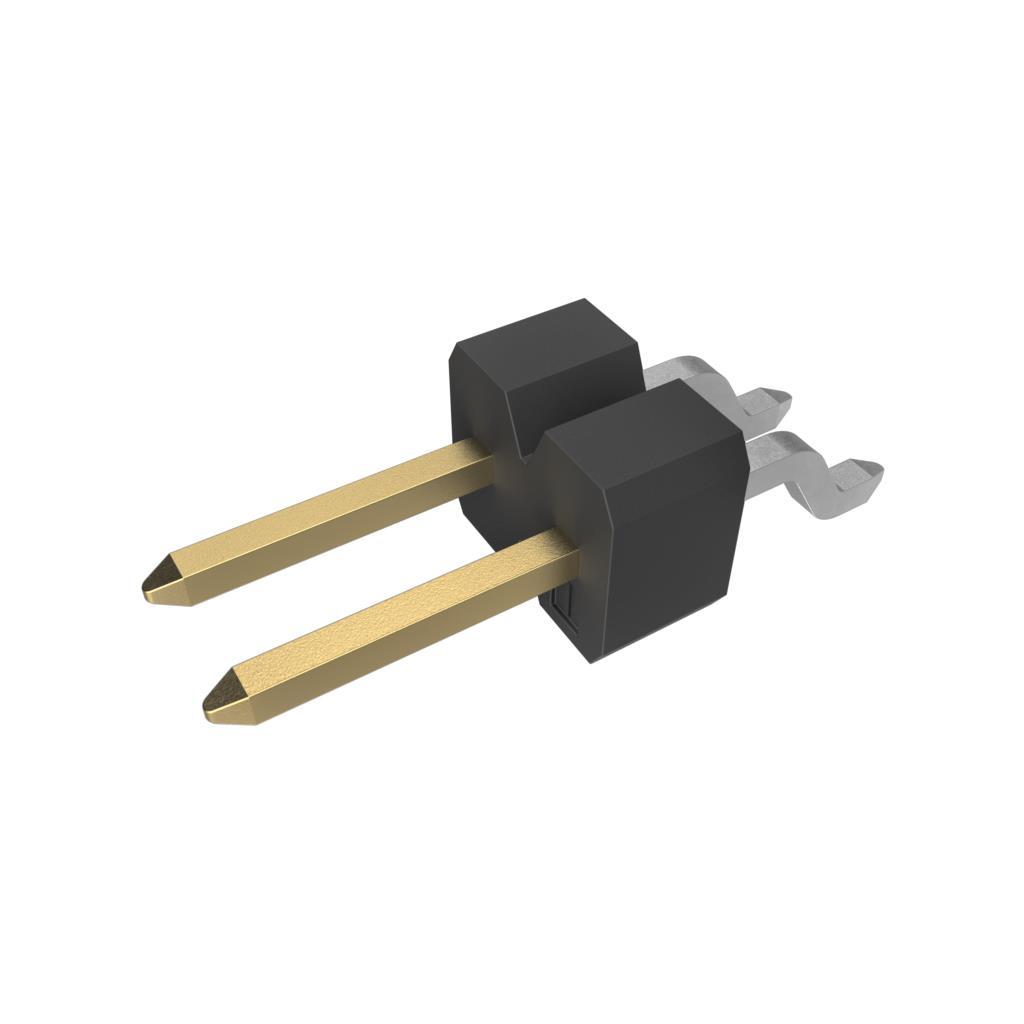

10119333-101-02LF

Description：CONN HEADER
Series：BERGSTIK®
Mfr：Amphenol ICC (FCI)
Package：Bag

SKU:de3be028e341 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10119333-101-02LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10119333-101-02LF

Description：CONN HEADER
Series：BERGSTIK®
Mfr：Amphenol ICC (FCI)
Package：Bag
Connector Type：Header, Breakaway
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：2
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.230" (5.84mm)
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.150" (3.81mm)
Contact Shape：Square
Contact Finish - Mating：Gold or Gold, GXT™
Contact Finish Thickness - Mating：30.0µin (0.76µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：-
Insulation Color：Black
Current Rating (Amps)：3A per Contact
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10119333-101-02LF

10119333-101-02LF

Headers, Male Pins Overview

The Amphenol ICC (FCI) 10119333-101-02LF is a surface mount header connector featuring two positions with a 0.100 inch (2.54 mm) pitch. Designed for right-angle mounting, this component utilizes press-fit termination to secure connections to the printed circuit board. The unit is constructed from thermoplastic insulation and copper alloy contacts, ensuring reliable signal transmission in compact electronic assemblies.

Headers, Male Pins Feature Summary

Right-angle surface mount configuration for space-constrained layouts
Press-fit termination method for robust PCB attachment
Dual-row contact arrangement within a compact footprint

Headers, Male Pins Applications

Compact consumer electronics assembly
Industrial control module interconnection
Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific manufacturer datasheet for the 10119333-101-02LF to confirm critical electrical ratings and mechanical dimensions. Ensure compatibility with the target PCB layout and mating connector requirements before finalizing procurement decisions.

Headers, Male Pins Selection Notes

Select this connector when a right-angle, low-profile solution is required for high-density applications. The press-fit termination offers durability, while the 2.54 mm pitch ensures standard compatibility with common interface designs.

Headers, Male Pins Part Context

This part belongs to the Amphenol ICC (FCI) InterCon Systems portfolio, focusing on mezzanine and power solutions. It represents a specialized interconnect designed for efficient signal transfer in modern electronic systems requiring reliable physical connections.
