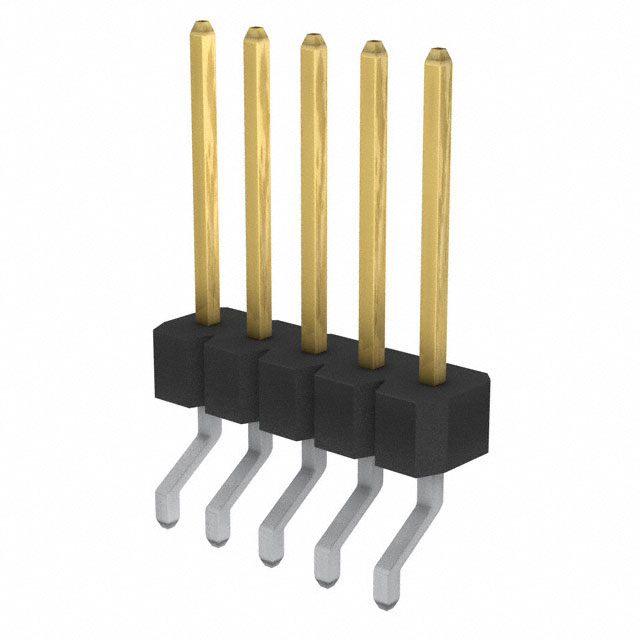

10119333-103A05LF

10119333-103A05LF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER SMD R/A 5POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10119333-103A05LF

• Description：CONN HEADER SMD R/A 5POS 2.54MM
• Series：BERGSTIK®
• Mfr：Amphenol ICC (FCI)
• Package：Tape & Reel (TR)
• Connector Type：Header, Breakaway
• Contact Type：Male Pin
• Pitch - Mating：0.100" (2.54mm)
• Number of Positions：5
• Number of Rows：1
• Row Spacing - Mating：-
• Number of Positions Loaded：All
• Style：Board to Board
• Shrouding：Unshrouded
• Mounting Type：Surface Mount, Right Angle
• Termination：Solder
• Fastening Type：Push-Pull
• Contact Length - Mating：0.420" (10.67mm)
• Contact Length - Post：-
• Overall Contact Length：-
• Insulation Height：0.150" (3.81mm)
• Contact Shape：Square
• Contact Finish - Mating：Gold or Gold, GXT™
• Contact Finish Thickness - Mating：30.0µin (0.76µm)
• Contact Finish - Post：Tin
• Contact Material：Copper Alloy
• Insulation Material：Thermoplastic
• Features：Pick and Place
• Operating Temperature：-
• Ingress Protection：-
• Material Flammability Rating：-
• Insulation Color：Black
• Current Rating (Amps)：3A per Contact
• Voltage Rating：-

Headers, Male Pins datasheet and documents for 10119333-103A05LF
