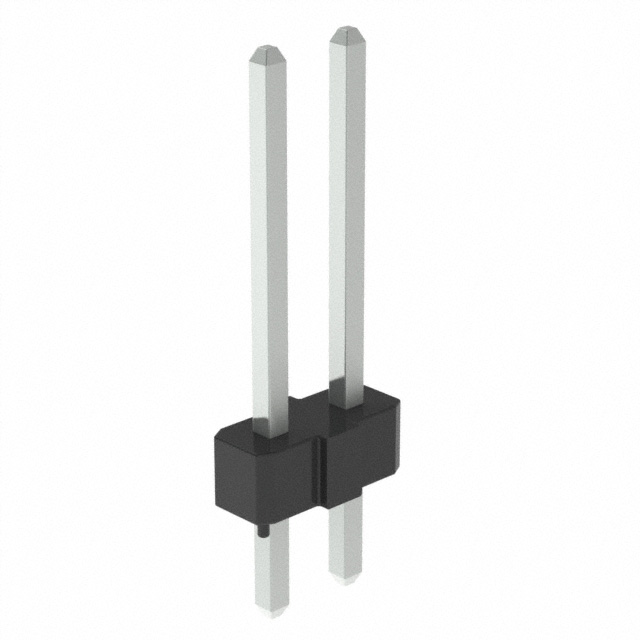

10119856-400HLF

Description：CONN HEADER VERT 20000POS 2.54MM
Series：BERGSTIK®
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:93aff141b92a Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

10119856-400HLF is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is CONN HEADER VERT 20000POS 2.54MM. Review the specifications below when checking this part for your BOM.

Headers, Male Pins specifications for 10119856-400HLF

Description：CONN HEADER VERT 20000POS 2.54MM
Series：BERGSTIK®
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：Cuttable
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.376" (9.56mm)
Contact Length - Post：0.098" (2.50mm)
Overall Contact Length：0.575" (14.60mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：-
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Headers, Male Pins datasheet and documents for 10119856-400HLF

10119856-400HLF

Headers, Male Pins Overview

The Amphenol ICC (FCI) part number 10119856-400HLF is a male pin header connector belonging to the general interconnect family. It features a 0.100 inch (2.54mm) contact pitch and utilizes through-hole termination for secure board attachment. The housing material meets UL94 V-0 flammability ratings, ensuring compliance with safety standards in electronic assemblies. This component is designed for signal transmission applications requiring reliable mechanical retention.

Headers, Male Pins Feature Summary

Through-hole mounting configuration for robust PCB integration
Male pin contact type for mating with socket counterparts
UL94 V-0 rated housing material for fire safety compliance

Headers, Male Pins Applications

Industrial control systems
Factory automation equipment
Internet of Things (IoT) devices

Headers, Male Pins Procurement Notes

Verify component authenticity through authorized channels due to obsolete status. Confirm end-of-life documentation from Amphenol ICC (FCI). Check for alternative sourcing options if immediate replacement is required. Ensure compatibility with existing design specifications before procurement.

Headers, Male Pins Selection Notes

Select this component for applications requiring standard 2.54mm pitch headers. Consider through-hole technology for higher mechanical strength compared to surface mount alternatives. Evaluate space constraints and pin count requirements against available configurations within the series.

Headers, Male Pins Part Context

Amphenol ICC (FCI) merged Amphenol FCI and Amphenol IT Communications Products in 2017. The company specializes in high-performance interconnect systems, sensors, and antennas. This product falls under their industrial and communications solutions portfolio, focusing on reliability and durability.
