Product Detailed Parameters
- Description：CONN EDGE DUAL FMALE 48POS
- Series：HPCE®
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：14; 10
- Number of Positions：48 (20 + 28 Power)
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：-
- Read Out：Dual
- Features：Card Extender
- Mounting Type：Board Edge, Straddle Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold or Gold, GXT™
- Contact Finish Thickness：-
- Contact Type：-
- Color：Black
- Flange Feature：Straddle Mount Opening, Unthreaded, 0.146" (3.70mm)
- Operating Temperature：-55°C ~ 105°C
Download product information
Overview

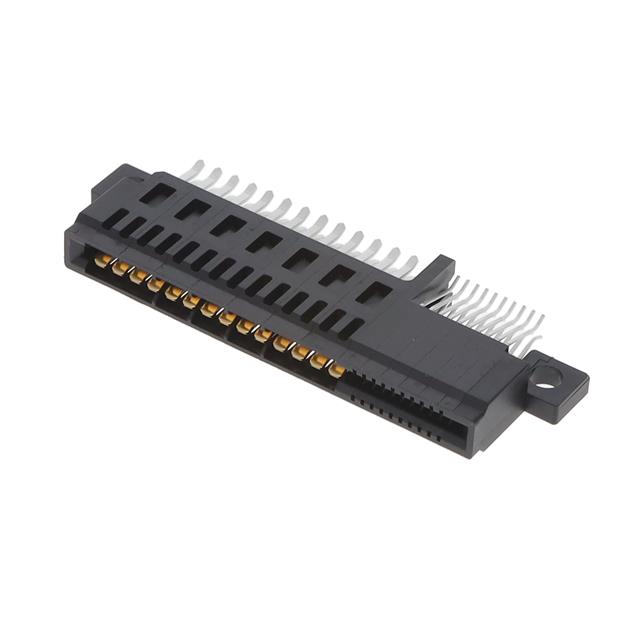

The Amphenol ICC (FCI) 10122859-009LF is a dual-sided card edge connector designed for high-performance computing environments. It features 48 positions, configured as 20 signal and 28 power contacts, utilizing a female receptacle interface. The component supports a board thickness of 0.062 inches (1.57mm) and employs a press-fit termination method for secure PCB mounting. Constructed with copper alloy contacts finished in gold or GXT™ plating, it ensures reliable conductivity. The unit operates within a temperature range of -55°C to +105°C and includes board lock features for stability.
Feature Summary
- Dual-sided configuration supporting mixed signal and power routing
- Press-fit termination for robust mechanical connection
- Gold or GXT™ contact plating for corrosion resistance
- Integrated board lock mechanism for enhanced stability
Applications
- High-performance computing systems
- Data processing infrastructure
- Industrial machinery control boards
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count and plating specifications. Ensure compatibility with the target PCB stack-up regarding the required 0.062-inch board thickness. Confirm that the press-fit termination process aligns with your assembly capabilities and thermal profile requirements before finalizing procurement.
Selection Notes
Select this component when a dual-sided card edge interface is required for mixed-signal applications. The 48-position layout accommodates both data and power lines efficiently. Consider the press-fit termination if through-hole soldering is not preferred. Verify that the operating temperature range meets the environmental demands of the intended deployment scenario.
Part Context
This connector belongs to the HPCE® series by Amphenol ICC (FCI), formerly FCI. The series targets information and communication markets, emphasizing signal integrity and power management. Amphenol acquired FCI in 2016, integrating its extensive connector portfolio into the Amphenol ICC business unit to support global electronic interconnect needs.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation.
