10123427-406001LF

Overview

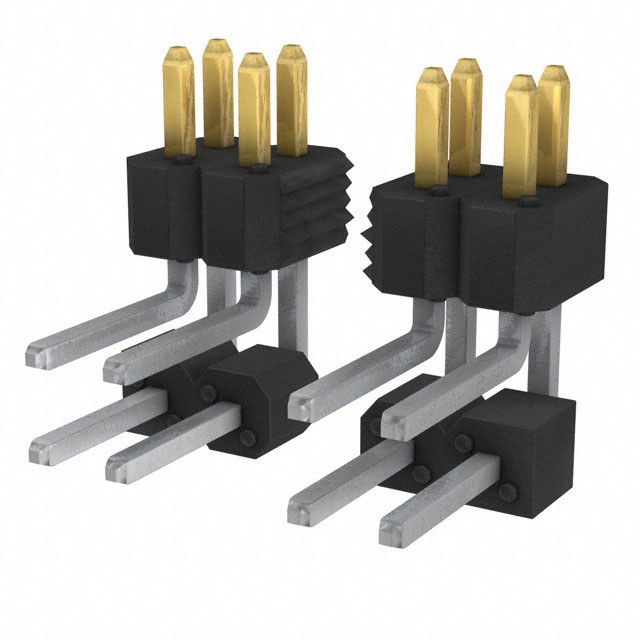

The Amphenol ICC (FCI) part number 10123427-406001LF is a board connector featuring six contacts arranged in two rows. It utilizes male pin terminals with a 0.1-inch pitch and right-angle mounting for through-hole soldering. The insulator is black, and the contact finish consists of gold over nickel plating to ensure reliable electrical performance.

Feature Summary

• Right-angle configuration facilitates compact circuit board layout design
• Gold over nickel contact plating provides corrosion resistance and stable conductivity
• Through-hole termination method ensures secure mechanical attachment

Applications

• General purpose electronic equipment interconnections
• Industrial control system signal routing
• Consumer electronics internal wiring

Procurement Notes

Verify the specific suffix against official manufacturer documentation to confirm exact contact material specifications and insulation properties. Ensure compatibility with mating connectors regarding pitch and row alignment before finalizing procurement orders.

Selection Notes

Select this component when a low-profile right-angle connection is required for space-constrained designs. Confirm that the operating temperature range and current carrying capacity meet the specific application requirements during the engineering phase.

Part Context

This component belongs to the standard board-to-board connector family produced by Amphenol ICC (FCI). These connectors are designed for high-density applications requiring reliable signal transmission between adjacent printed circuit boards in various electronic assemblies.

Replacement Considerations

Consult official cross-reference lists for direct substitutes. Verify that any alternative maintains identical pin count, pitch, and mounting orientation to ensure mechanical fit.
