10123500-412001TLF

$0.51

Description：CONN HEADER VERT 12POS 2.54MM
Series：BERGSTIK®
Mfr：Amphenol ICC (FCI)
Package：Tube

SKU:55b993cbb6f0 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 12POS 2.54MM
Series：BERGSTIK®
Mfr：Amphenol ICC (FCI)
Package：Tube
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.100" (2.54mm)
Number of Positions：12
Number of Rows：2
Row Spacing - Mating：0.100" (2.54mm)
Number of Positions Loaded：All
Style：Board to Board
Shrouding：Unshrouded
Mounting Type：Through Hole
Termination：Solder
Fastening Type：Push-Pull
Contact Length - Mating：0.353" (8.97mm)
Contact Length - Post：0.110" (2.79mm)
Overall Contact Length：0.563" (14.30mm)
Insulation Height：0.100" (2.54mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Brass
Insulation Material：Liquid Crystal Polymer (LCP)
Features：-
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Download product information

10123500-412001TLF

Overview

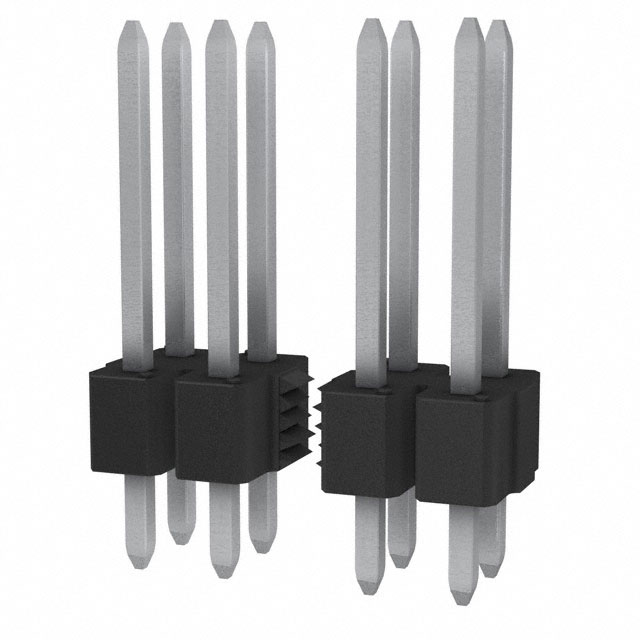

The Amphenol ICC (FCI) part number 10123500-412001TLF is a BergStik header connector designed for board-to-board applications. It features a vertical orientation with a push-pull fastening mechanism and utilizes male pin contacts. The component has a pitch of 0.100 inches (2.54mm) and accommodates 12 positions arranged in two rows. This design allows users to cut or break the connector strip to length, providing flexibility for specific application profiles.

Feature Summary

Features a breakaway design that allows users to cut or break the connector strip to length to suit specific application profiles.
Utilizes a push-pull fastening type to ensure secure connection between boards.
Designed as a vertical header with male pin contacts for reliable board-to-board electrical interfacing.

Applications

Industrial equipment interconnects
Commercial device assemblies
Data center infrastructure components

Procurement Notes

Verify the exact suffix 'TLF' against official Amphenol documentation to confirm plating specifications and environmental compliance status. Ensure the required contact count matches the 12-position configuration before ordering. Confirm that the vertical orientation and push-pull style align with the target PCB layout constraints. Cross-reference the datasheet for current ratings and mating cycle durability requirements.

Selection Notes

Select this component when a customizable length header is required for board-to-board connections. The 2.54mm pitch offers standard spacing compatibility. Consider the push-pull mechanism if higher retention force is needed compared to standard press-fit headers. Evaluate the vertical profile against available clearance on the assembly stack-up.

Part Context

This component belongs to the BergStik series by Amphenol ICC (FCI), which specializes in versatile interconnect solutions. The BergStik line is known for its adaptability through breakaway designs, allowing engineers to optimize space usage. FCI provides these connectors for various sectors including industrial and commercial applications, emphasizing robust connectivity.
