10124034-406001CLF

Overview

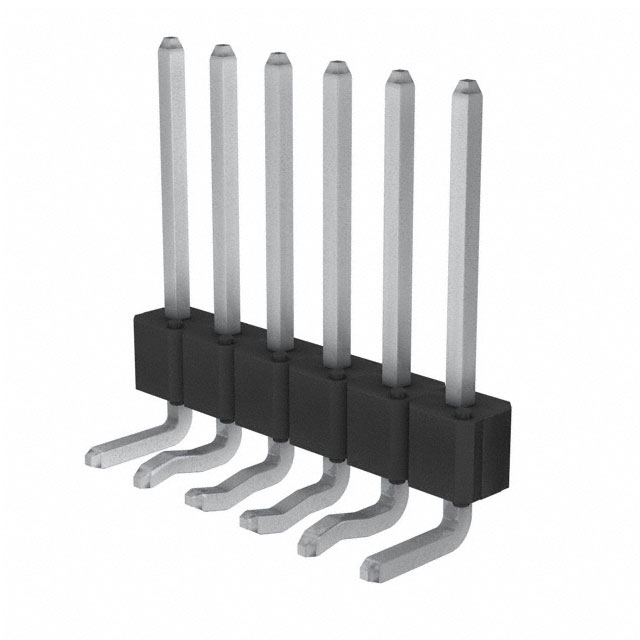

The Amphenol ICC (FCI) part number 10124034-406001CLF is a header connector from the Millipacs® series. It features a right-angle configuration with six positions and a 2.54mm pitch. The connector utilizes press-fit termination for through-hole mounting on printed circuit boards. Contact surfaces are gold-plated to ensure reliable electrical conductivity. Rated at 750Vrms, it supports a maximum operating temperature of 125°C and a minimum of -55°C. The design includes board guide rails for precise alignment during assembly.

Feature Summary

• Right-angle header design facilitates compact vertical integration within electronic assemblies.
• Press-fit termination method ensures robust mechanical stability without soldering requirements.
• Gold-plated contacts provide durable performance against corrosion and oxidation.

Applications

• High-density backplane interconnections
• Industrial control system signal routing
• Telecommunications equipment board-to-board linking

Procurement Notes

Verify that the specific suffix CLF matches the required plating and material specifications for your application environment. Confirm that the right-angle orientation aligns with your PCB layout constraints. Ensure compatibility with the mating receptacle in terms of pin count and pitch. Cross-reference the manufacturer's latest datasheet to validate current RoHS compliance status before finalizing procurement orders.

Selection Notes

Select this component when a rigid, high-reliability connection is needed without thermal stress from soldering. The right-angle form factor is optimal for space-constrained designs requiring vertical signal transfer. Consider the 2.54mm pitch for standard component spacing. Evaluate the press-fit installation process against available manufacturing capabilities and tooling requirements for efficient production scaling.

Part Context

This component belongs to the Millipacs® Hard Metric series, designed for demanding industrial and telecommunications environments. The series emphasizes durability and high signal integrity through standardized hard metric dimensions. As an Amphenol ICC product, it integrates into broader ecosystem solutions offering consistent quality across various connector types and configurations.

Replacement Considerations

Direct substitutes must match the 6-position count, 2.54mm pitch, right-angle orientation, and press-fit termination. Verify identical housing dimensions and guide rail placement for seamless mechanical integration. Ensure equivalent voltage ratings and contact plating specifications to maintain electrical performance standards.
