10124392-001LF

Overview

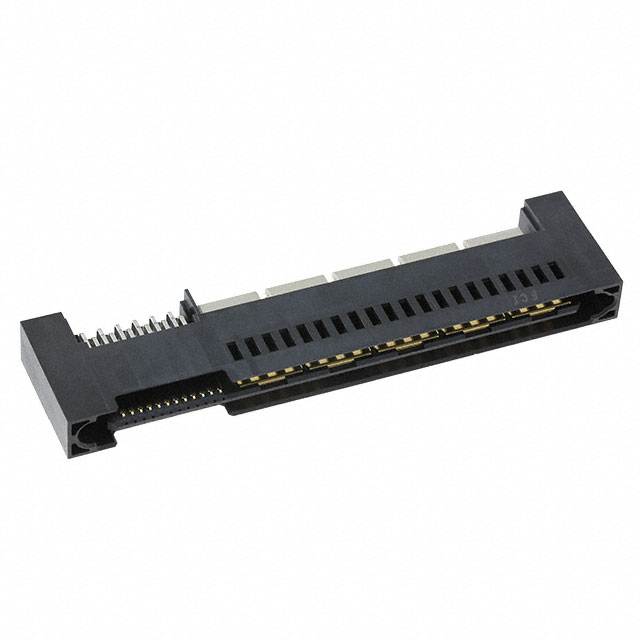

The Amphenol ICC (FCI) 10124392-001LF is a male card edge connector designed for internal slot mounting. It features 64 positions, configured as 24 signal and 40 power contacts. The component utilizes a black housing and is part of the HPCE series. It is supplied in tray packaging and is intended for high-density board-to-board interconnections requiring robust power and signal transmission capabilities.

Feature Summary

• Supports mixed signal and power configurations with 24 signal and 40 power positions
• Designed for internal slot mounting applications
• Constructed with a black housing material

Applications

• High-performance computing systems
• Server backplane interconnects
• Industrial control boards

Procurement Notes

Verify the specific contact configuration and housing color against project requirements. Confirm that the internal slot mounting style aligns with the mechanical design. Ensure compatibility with mating card edge connectors within the HPCE series ecosystem before finalizing procurement.

Selection Notes

Select this component for applications requiring a high density of power and signal lines in a compact form factor. The internal slot design is suitable for constrained spaces where external protrusion must be minimized. Evaluate thermal and electrical ratings against system demands.

Part Context

This connector belongs to the HPCE series from Amphenol ICC (FCI), which specializes in high-density interconnect solutions. The series is engineered for demanding environments, offering reliable performance for complex electronic assemblies that require significant I/O capacity.

Replacement Considerations

Direct substitutes within the same series or family should be verified by checking pin count and mounting style. Cross-referencing with other HPCE series variants may provide alternative options if availability is an issue.
