10124393-001LF

Overview

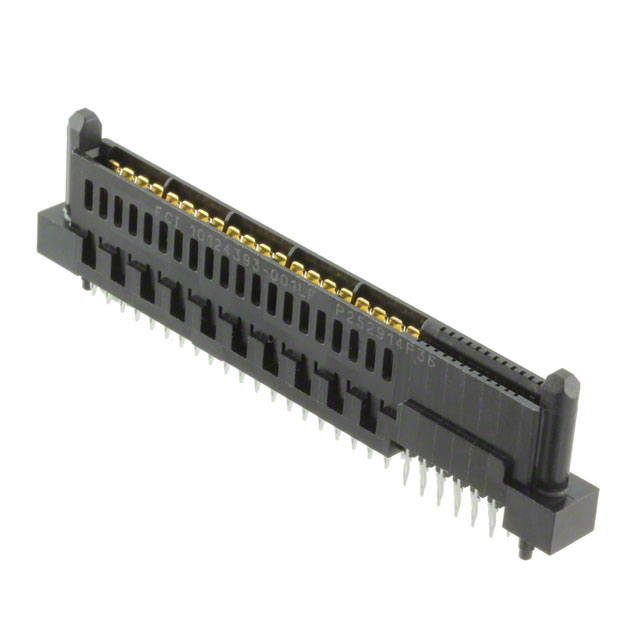

The Amphenol ICC (FCI) 10124393-001LF is a dual-sided edge card connector designed for board-to-board applications. It features 64 total positions, comprising 24 signal and 40 power contacts. The connector utilizes a black thermoplastic housing with gold or GXT™ contact plating. It supports a card thickness of 0.062 inches (1.57mm) and employs a press-fit termination method for surface mounting. The component belongs to the HPCE® series and includes board lock features for secure installation.

Feature Summary

• Dual-sided configuration supporting both signal and power transmission
• Press-fit termination ensures robust surface mount attachment
• Integrated board lock mechanism provides mechanical stability

Applications

• High-density server backplanes
• Storage array interconnects
• Telecommunications infrastructure boards

Procurement Notes

Verify that the specific part number matches the required pin count and termination style. Confirm compatibility with the target PCB card thickness and mating edge connector specifications. Ensure the supplier provides original manufacturer documentation to validate authenticity and traceability before purchase.

Selection Notes

Select this component when high current capacity is required alongside signal integrity in a compact form factor. The dual-sided design maximizes connectivity within limited board space. Consider the press-fit requirement for assembly processes and ensure the application environment supports the specified operating temperature range.

Part Context

This connector is part of the HPCE® series from Amphenol ICC (FCI), targeting high-performance computing and data storage markets. It complements other components in the same family by offering specialized power and signal separation in a single dual-sided unit.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify cross-reference options directly with the manufacturer for equivalent specifications.
