10124928-001LF

Overview

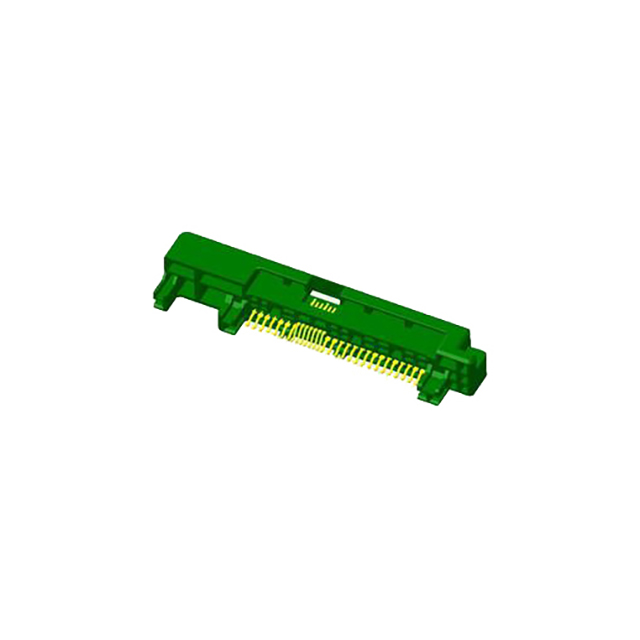

The Amphenol ICC (FCI) part number 10124928-001LF is a SAS 3.0 connector designed for high-speed data transmission at 12Gb/s. It features a 29-position configuration in a right-angle plug format, utilizing straddle mount installation for secure board attachment. This component belongs to the PCI Express and PCI connector category, engineered to support serial attached SCSI applications requiring robust mechanical stability and reliable signal integrity.

Feature Summary

• Supports 12Gb/s data transfer rates for SAS 3.0 interfaces
• Right-angle plug design with straddle mount configuration
• 29-position contact layout for serial connectivity

Applications

• SAS 3.0 storage backplane connections
• High-density server storage arrays
• Data center storage subsystems

Procurement Notes

Verify the specific datasheet version associated with this part number before procurement, as manufacturer documentation may undergo revisions. Confirm that the straddle mount requirement aligns with your PCB footprint design. Ensure compliance with RoHS3 standards if required by your manufacturing process. Cross-reference the 29-position count against your system's pinout requirements to avoid integration errors during assembly.

Selection Notes

Select this component when a right-angle, straddle-mount solution is necessary for SAS 3.0 environments. The 29-position count dictates its use in specific serial configurations rather than standard parallel buses. Evaluate the mechanical constraints of the enclosure to accommodate the right-angle profile. Consider thermal management needs inherent to high-speed serial data lines within dense storage architectures.

Part Context

This connector is part of Amphenol ICC's portfolio focused on high-performance interconnect solutions. It serves the growing demand for scalable storage networks in enterprise environments. The product line emphasizes durability and signal integrity for demanding industrial and commercial applications where reliable data throughput is critical for operational efficiency.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating cables or backplanes before considering alternative sources. Consult official manufacturer channels for potential obsolescence notices or recommended upgrades.
