10125023-320032ALF

Overview

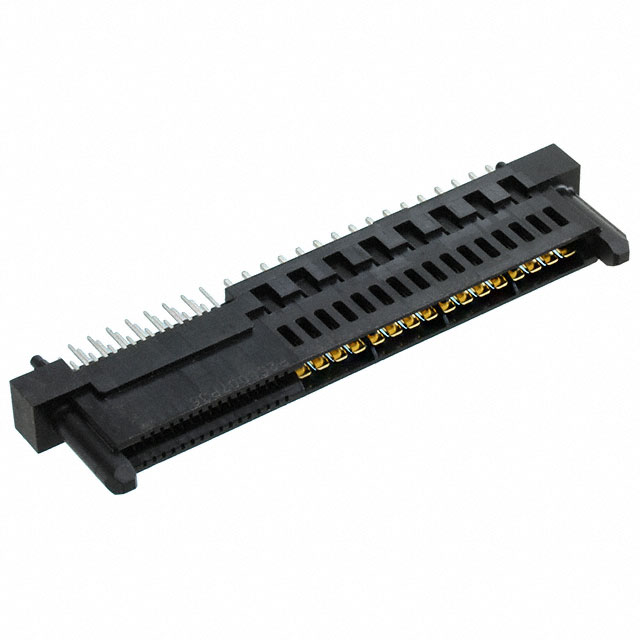

The Amphenol ICC (FCI) 10125023-320032ALF is a standard card edge connector from the HPCE series. It features a dual female receptacle configuration with 60 total positions, comprising 24 signal and 36 power contacts. The component utilizes a 0.050-inch (1.27 mm) pitch for signal lines and a 0.100-inch (2.54 mm) pitch for power lines. Designed for board-to-board applications, it employs a press-fit termination method to secure the connector to the PCB. The housing is black thermoplastic, and the contacts are finished with gold or GXT™ plating.

Feature Summary

• Dual-sided female contact arrangement supporting mixed signal and power routing within a single interface.
• Hybrid pitch architecture accommodating both high-density signal traces and higher-current power distribution paths.
• Press-fit termination mechanism ensures robust mechanical anchoring and reliable electrical connection without soldering.

Applications

• High-pin-count backplane interconnects
• Server and storage system motherboard connections
• Industrial control board interfaces

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm pin count and pitch configurations. Ensure that the required press-fit hole dimensions on the target PCB align with the component specifications. Confirm RoHS compliance status and lead times directly with authorized distributors, as availability may vary by region.

Selection Notes

Select this component when a high-density dual-edge interface is required for both data and power transmission. The hybrid pitch design allows for optimized trace routing while maintaining sufficient spacing for power lines. Consider the press-fit installation requirement during PCB layout and assembly planning to ensure proper mechanical retention.

Part Context

This part belongs to the HPCE (High Performance Card Edge) product line by Amphenol ICC (FCI). The HPCE series is engineered for demanding applications requiring high reliability and performance in dense electronic assemblies. The model number indicates a dual female connector with specific power and signal position counts.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
