10125023-320032BLF

Overview

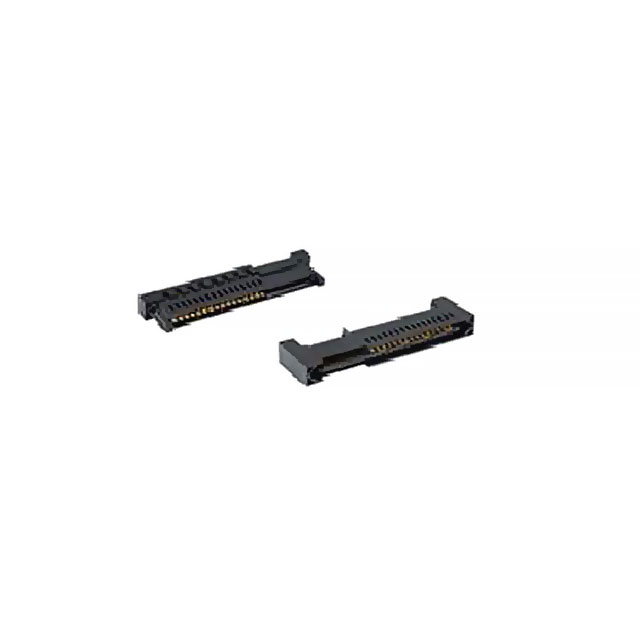

The Amphenol ICC (FCI) 10125023-320032BLF is a standard card edge connector from the HPCE series, designed as a vertical receptacle with press-fit termination. It features 32 positions and 32 sockets, utilizing a dual female contact configuration for a total of 64 contacts. The component operates with a pitch of 1.27 mm and an edgeboard thickness of 1.27 mm. Electrical specifications include an insulation resistance ranging from 500 Mohms to 5 Gohms. The connector employs GXT contact plating and is rated for operation within a temperature range of -55°C to +105°C.

Feature Summary

• Vertical board-to-board connection architecture optimized for high-density signal routing
• Press-fit termination method ensures secure mechanical attachment without soldering
• Dual female contact design accommodates standard card edge profiles

Applications

• High-performance computing server backplanes
• Telecommunications infrastructure equipment
• Industrial control system interconnects

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact pin count and termination style. Ensure compatibility with the target PCB stack-up regarding hole dimensions and mounting requirements. Confirm RoHS compliance status through official documentation prior to final procurement authorization.

Selection Notes

Select this component when a vertical, non-soldered interconnection is required for high-reliability applications. The press-fit technology eliminates thermal stress on the circuit board during assembly. Verify that the mating card edge thickness aligns with the connector's specified tolerance to ensure proper electrical contact and mechanical stability.

Part Context

This part belongs to the HPCE (High Performance Card Edge) family, which is engineered for demanding environments requiring robust signal integrity. The series supports various configurations including different pin counts and termination types, serving as a critical interface in modern electronic systems where space constraints and performance are paramount.

Replacement Considerations

Cross-reference with other HPCE series receptacles offering identical 32-position layouts and press-fit termination. Ensure any substitute maintains the same vertical orientation and compatible edgeboard thickness specifications to guarantee functional interchangeability.
