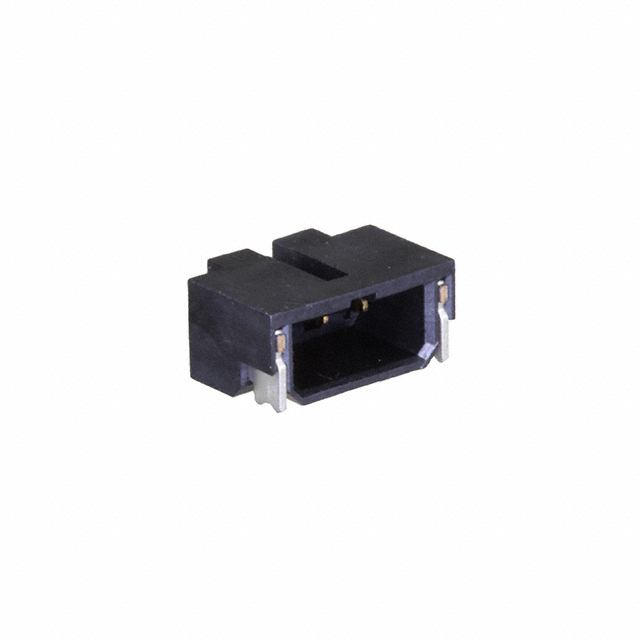

10125839-03RAEHLF

Description：CONN HEADER SMD R/A 3POS 1.2MM
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)

SKU:f34f77541519 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER SMD R/A 3POS 1.2MM
Series：-
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR)
Connector Type：Receptacle
Contact Type：Tab
Pitch - Mating：0.047" (1.20mm)
Number of Positions：3
Number of Rows：1
Row Spacing - Mating：-
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Surface Mount, Right Angle
Termination：Solder
Fastening Type：Detent Lock
Contact Length - Mating：-
Contact Length - Post：-
Overall Contact Length：-
Insulation Height：0.098" (2.50mm)
Contact Shape：Rectangular
Contact Finish - Mating：Gold
Contact Finish Thickness - Mating：3.90µin (0.099µm)
Contact Finish - Post：Gold
Contact Material：Copper Alloy
Insulation Material：Liquid Crystal Polymer (LCP), Halogen Free
Features：Solder Retention
Operating Temperature：-
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：-
Voltage Rating：-

Download product information

10125839-03RAEHLF

Overview

The Amphenol ICC (FCI) part number 10125839-03RAEHLF is a rectangular header connector designed for surface mount applications. It features a right-angle configuration with three positions and a pitch of 1.2mm. The component utilizes male pin contacts intended for board-to-board interconnection. This specific variant is identified as a lead-free product compliant with RoHS standards, suitable for automated assembly processes requiring precise spatial orientation.

Feature Summary

Surface mount right-angle design for compact PCB layouts
Three-position configuration with 1.2mm spacing
Male pin contact type for secure mating

Applications

Board-to-board interconnects in consumer electronics
Compact industrial control modules
Automotive electronic sub-systems

Procurement Notes

Verify the exact suffix 'RAEH' to confirm the right-angle surface mount specification and lead-free status. Ensure compatibility with 1.2mm pitch requirements during procurement. Confirm that the three-position count matches the design intent. Cross-reference the manufacturer's latest documentation to ensure no obsolescence notices apply to this specific ordering code before finalizing orders.

Selection Notes

Select this component when a low-profile, right-angle connection is required for space-constrained designs. The 1.2mm pitch allows for higher density compared to standard 2.54mm headers. Consider the surface mount technology for automated manufacturing efficiency. Evaluate the mechanical stability of the right-angle footprint against vibration requirements in the target application environment.

Part Context

This connector belongs to the broader category of rectangular headers manufactured by Amphenol ICC (FCI). It is distinct from through-hole or shrouded variants within the same series. The 1.2mm pitch differentiates it from larger spacing connectors, targeting miniaturized electronic assemblies where vertical height and lateral space are critical constraints.
