Product Detailed Parameters
- Description：CONN HEADER SMD R/A 6POS 1.2MM
- Series：-
- Mfr：Amphenol ICC (FCI)
- Package：Tape & Reel (TR),Tape & Reel (TR)
- Connector Type：Receptacle
- Contact Type：Tab
- Pitch - Mating：0.047" (1.20mm)
- Number of Positions：6
- Number of Rows：1
- Row Spacing - Mating：-
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Surface Mount, Right Angle
- Termination：Solder
- Fastening Type：Detent Lock
- Contact Length - Mating：-
- Contact Length - Post：-
- Overall Contact Length：-
- Insulation Height：0.098" (2.50mm)
- Contact Shape：Rectangular
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：3.90µin (0.099µm)
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Halogen Free
- Features：Solder Retention
- Operating Temperature：-
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：-
- Voltage Rating：-
Download product information
Overview

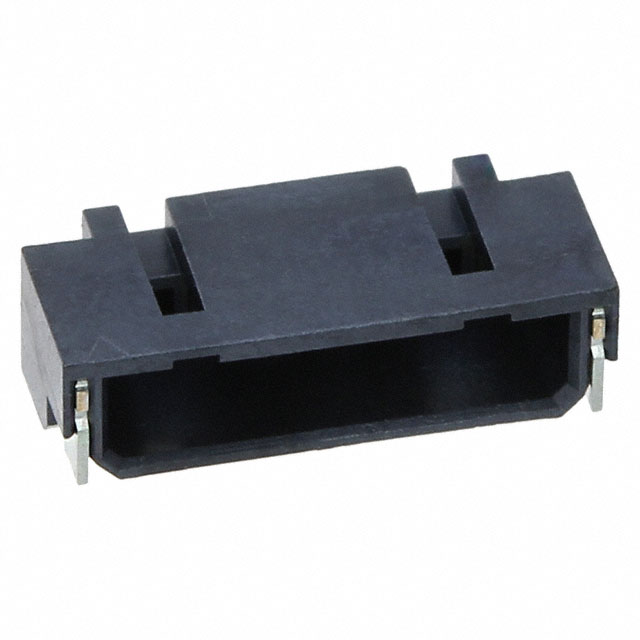

The 10125839-06RAEHLF is a rectangular header connector manufactured by Amphenol ICC (FCI). It features six positions with a 1.2 mm pitch, designed for surface mount installation in a right-angle configuration. The component belongs to the P1.2 series and functions as a board-to-board interconnect solution.
Feature Summary
- Right-angle surface mount design for compact PCB integration
- Six-position layout with 1.2 mm contact spacing
- Board-to-board connection style
Applications
- High-density electronic assemblies
- Compact consumer electronics devices
- Industrial control boards requiring space-efficient connections
Procurement Notes
Verify component authenticity through authorized channels due to obsolete status. Confirm RoHS compliance and lead-free specifications against current manufacturing standards. Validate pin count and orientation requirements prior to procurement to ensure compatibility with existing PCB footprints.
Selection Notes
Select this component when a low-profile, right-angle header is required for tight spatial constraints. Ensure the 1.2 mm pitch matches the mating connector specifications. Verify that the surface mount technology aligns with the assembly process capabilities.
Part Context
This part belongs to the P1.2 series of headers from Amphenol ICC (FCI), focusing on miniaturized interconnect solutions. The specific model provides a reliable electrical pathway for signal transmission in densely packed circuit boards where vertical clearance is limited.
Replacement Considerations
Public confirmed substitute part numbers are not available. As the component is marked obsolete, engineering change orders may be necessary to adopt alternative connectors with compatible mechanical and electrical characteristics.
