Product Detailed Parameters
- Description：CONN HEADER R/A 2POS
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：-
- Number of Positions：2
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.285" (7.25mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

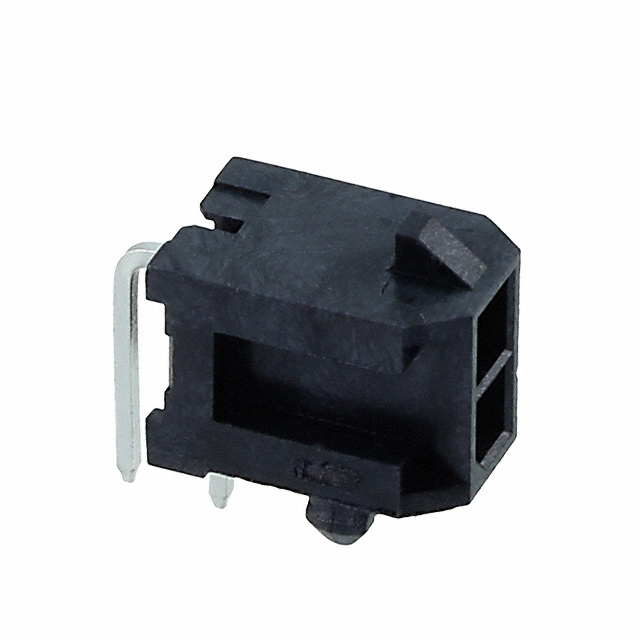

The Amphenol ICC (FCI) 10127720-021LF is a Minitek Pwr 3.0 series power header connector featuring 2 positions in a dual-row configuration. It utilizes a 3.00mm pitch with square male pin contacts made of copper alloy and tin plating. Designed for through-hole right-angle mounting, the housing is constructed from black liquid crystal polymer (LCP) rated UL94 V-0. The connector supports up to 600VAC/DC and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Right-angle through-hole mounting for compact board integration
- High insulation material rated UL94 V-0 for thermal stability
- Dual-row layout with 3.00mm spacing for power distribution
Applications
- Power supply unit interconnections
- Industrial control system boards
- Server and storage equipment power headers
Procurement Notes
Verify the specific suffix 'LF' indicates lead-free compliance and RoHS adherence per current manufacturer standards. Confirm that the right-angle orientation matches the PCB footprint requirements. Ensure the tin-plated contact finish is suitable for the intended mating cycle and environmental conditions without requiring gold plating alternatives.
Selection Notes
Select this component when a low-profile, right-angle power header is required for space-constrained designs. The 3.00mm pitch allows for higher current capacity compared to signal connectors. Consider the LCP material properties for high-temperature soldering processes and ensure the 600V rating meets the circuit voltage requirements.
Part Context
This part belongs to the Minitek Pwr 3.0 family, designed for robust power-to-board connections. It complements other variants in the series offering different pin counts and orientations. The product line emphasizes durability and reliable electrical performance in demanding electronic environments.
Replacement Considerations
Direct substitutes include other 2-position, 3.00mm pitch right-angle headers from the same Minitek Pwr 3.0 series, such as the 10127720-041LF or 10127720-061LF, provided the pin count difference is acceptable for the design.
