10127720-022LF

Overview

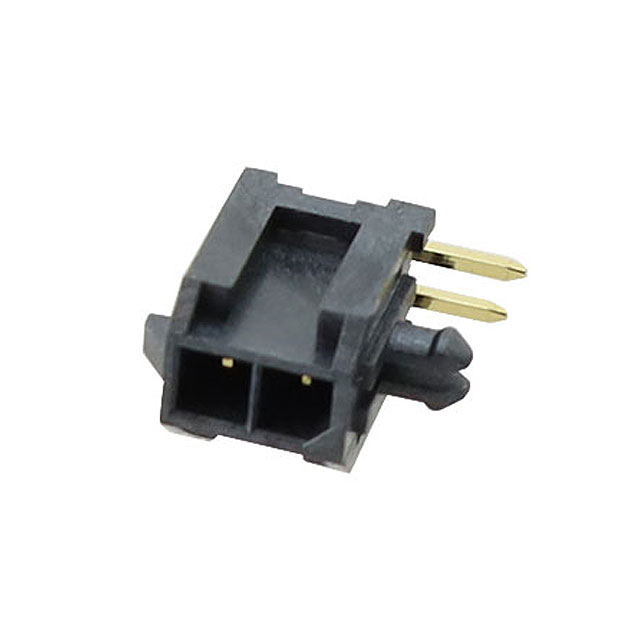

The Amphenol ICC (FCI) part number 10127720-022LF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a 2-position configuration with a 0.118-inch (3.00mm) mating pitch and a 0.118-inch (3.00mm) row spacing. The connector utilizes square, through-hole termination pins with a tin plating finish of 100.0µin (2.54µm). Constructed from copper alloy contacts and black liquid crystal polymer (LCP) insulation rated UL94 V-0, it supports a maximum voltage of 600VAC/DC and operates within a temperature range of -40°C to 105°C. The housing includes a four-wall shield and board lock features.

Feature Summary

• Minitek Pwr 3.0 series design providing robust power interconnect capabilities
• Four-wall shielded housing structure for enhanced environmental protection
• Board lock mechanism ensures secure mechanical retention on the PCB
• Compliant with灼热 wire specification standards for fire safety

Applications

• Industrial control systems requiring reliable power distribution
• Consumer electronics utilizing board-to-wire connections
• General purpose electrical equipment needing high-voltage isolation

Procurement Notes

Verify the specific pin count and orientation against the official datasheet before ordering, as suffixes may alter physical dimensions or contact configurations. Confirm that the tin plating thickness meets the required corrosion resistance standards for the intended operating environment. Ensure compatibility with mating cables or wires regarding current ratings and insulation types. Cross-reference the manufacturing date code if long-term supply consistency is critical for production runs.

Selection Notes

Select this component when a low-profile, right-angle power header is required for space-constrained designs. The 3.00mm pitch allows for higher current capacity compared to signal-grade connectors while maintaining a compact footprint. Consider the LCP material properties for high-temperature soldering processes and the UL94 V-0 rating for applications demanding strict flame retardancy. Evaluate the board lock feature necessity for vibration-prone environments.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, which offers a range of power solutions characterized by a 3.00mm pitch. The series provides various position counts and mounting styles to accommodate diverse power delivery needs. As a product of Amphenol ICC (FCI), it adheres to industry standards for reliability and performance in harsh conditions, serving as a standard interconnect solution for power transmission in electronic assemblies.

Replacement Considerations

Direct substitutes include other 2-position, 3.00mm pitch headers from the same Minitek Pwr 3.0 series, such as 10127720-04LF or 10127720-06LF, provided the pin count difference is acceptable. Alternative manufacturers offering identical specifications must match the 600VAC/DC rating, -40°C to 105°C temperature range, and UL94 V-0 insulation material. Verify that any replacement maintains the same four-wall shielded design and board lock functionality.
