10127720-041GLF

Overview

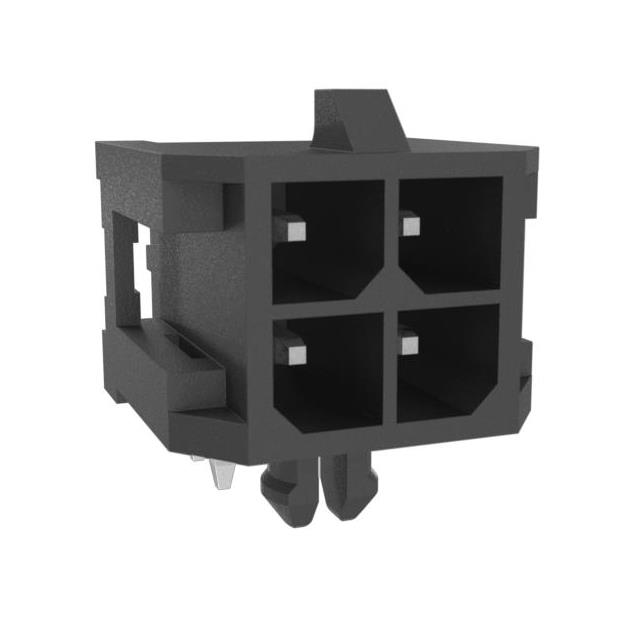

The Amphenol ICC (FCI) 10127720-041GLF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a right-angle, through-hole mounting style with four positions arranged in a dual-row configuration. The connector utilizes a 0.118-inch (3.00mm) mating pitch and includes a shrouded, four-wall design to ensure proper alignment and protection. Contact surfaces are tin-plated copper alloy pins, rated for 600V AC/DC, with an operating temperature range of -40°C to 105°C.

Feature Summary

• Shrouded four-wall housing provides alignment guidance and contact protection
• Right-angle through-hole termination facilitates specific PCB layout requirements
• Tin-plated contacts offer reliable conductivity and corrosion resistance
• Board lock feature ensures secure mechanical attachment to the circuit board

Applications

• Power distribution within electronic equipment enclosures
• Internal wiring connections between sub-assemblies
• Low-voltage DC power supply interfaces
• Industrial control panel interconnections

Procurement Notes

Verify that the specific part number matches the required pin count and orientation before ordering. Confirm that the tin plating specification aligns with soldering process compatibility. Ensure the right-angle form factor fits within the designated spatial constraints of the assembly. Cross-reference the insulation material properties against environmental exposure conditions.

Selection Notes

Select this component when a low-profile, right-angle power connection is required for small current applications. The 3.00mm pitch allows for compact spacing while maintaining adequate clearance. Consider the tin finish if lead-free compliance is mandatory without requiring gold plating. Evaluate the shrouded design necessity for preventing misalignment during mating operations.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, which focuses on cost-effective power solutions for consumer and industrial electronics. The series emphasizes ease of assembly and reliable performance in standard environments. It serves as a fundamental interconnect solution where high-density signal connectors are unnecessary, prioritizing robust power delivery over complex signaling capabilities.

Replacement Considerations

Direct substitutes within the same series include other position variants such as 10127720-161GLF or 10127720-242GLF, provided the pin count differs but the pitch and housing style remain identical. Verify that any alternative maintains the right-angle orientation and through-hole termination method to ensure mechanical compatibility.
