10127720-061LF

Overview

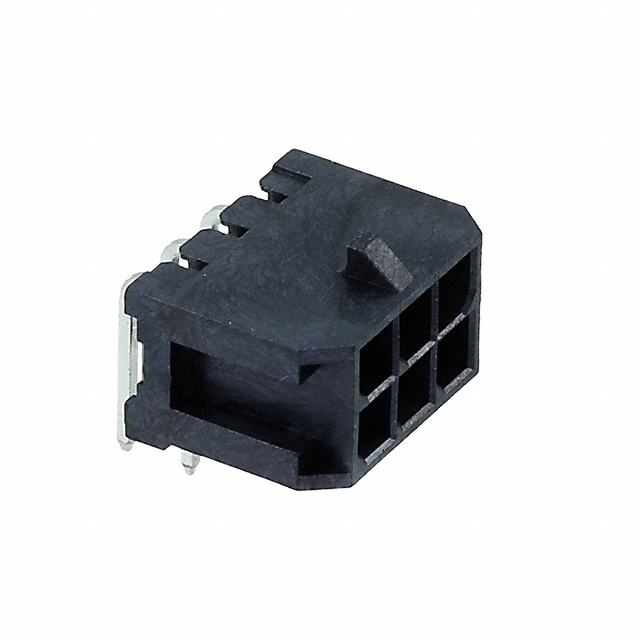

The Amphenol ICC (FCI) 10127720-061LF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a dual-row configuration with six positions and a 3.00mm pitch. The component utilizes through-hole right-angle termination with solder pin contacts made of copper alloy, finished with tin plating. Constructed from black liquid crystal polymer (LCP), it offers UL94 V-0 flammability rating and operates within a temperature range of -40°C to +105°C. Rated for 600VAC/DC, the unit includes board lock features and four-wall shielding.

Feature Summary

• Dual-row right-angle header design for compact power distribution
• Liquid crystal polymer insulation with UL94 V-0 flame retardancy
• Tin-plated copper alloy contacts for reliable conductivity
• Integrated board locking mechanism and four-wall shielding

Applications

• Power supply units requiring robust board-to-wire connections
• Industrial control systems needing high current capacity
• Consumer electronics with space-constrained power interfaces

Procurement Notes

Verify that the specific part number matches the required six-position configuration and right-angle orientation. Confirm that the tin plating thickness meets your corrosion resistance requirements. Ensure compatibility with the mating housing from the same Minitek Pwr 3.0 series. Check that the through-hole mounting style aligns with your PCB fabrication capabilities. Validate the operating temperature range against your environmental specifications.

Selection Notes

Choose this connector when a low-profile, high-current solution is needed for power delivery. The 3.00mm pitch allows for higher current handling compared to smaller signal connectors. The right-angle format facilitates efficient cable routing in enclosed spaces. Consider the LCP material for superior thermal stability during soldering processes. Evaluate the board lock feature if vibration resistance is critical for the application environment.

Part Context

This component belongs to the Minitek Pwr 3.0 family, which provides standardized power interconnect solutions. The series supports various position counts and termination styles while maintaining consistent electrical ratings. As an FCI product, it adheres to strict manufacturing standards for reliability. The 10127720 prefix identifies the specific header variant within the broader power connector portfolio.

Replacement Considerations

Direct substitutes include other 6-position, 3.00mm pitch headers from the Minitek Pwr 3.0 line. Verify mechanical dimensions and pinout compatibility before substitution. Alternative manufacturers may offer similar specs but require validation of contact material and insulation ratings.
