10127720-062LF

Overview

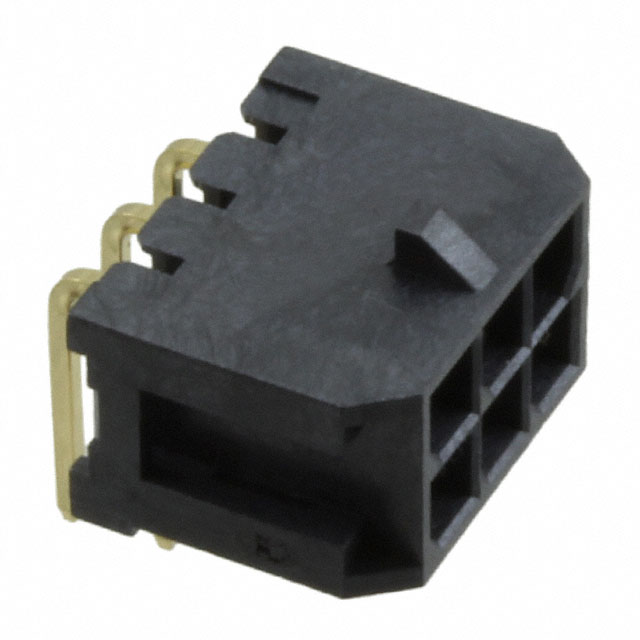

The Amphenol ICC (FCI) 10127720-062LF is a Minitek Pwr 3.0 series power header connector designed for through-hole, right-angle mounting. It features 6 positions in a dual-row configuration with a 3.00 mm pitch. The contacts are tin-plated copper alloy pins housed in black liquid crystal polymer (LCP). Rated for 600VAC/DC and operating within -40°C to +105°C, it includes board lock features and meets UL94 V-0 flammability standards.

Feature Summary

• Right-angle through-hole design for compact PCB integration
• Tin-plated copper alloy contacts for reliable conductivity
• Black LCP housing with UL94 V-0 flammability rating
• Board lock mechanism for secure installation

Applications

• Power distribution on printed circuit boards
• Wire-to-board interconnections
• Industrial equipment power headers
• Consumer electronics power supply connections

Procurement Notes

Verify the specific pin count and row configuration against the official datasheet before procurement. Confirm that the tin plating thickness and insulation resistance meet project requirements. Ensure compatibility with mating connectors in the Minitek Pwr 3.0 series. Check for any recent product change notices affecting material specifications or manufacturing locations.

Selection Notes

Select this component when a low-profile, right-angle power header is required for high-current applications up to 600VAC. The 3.00 mm pitch allows for higher current capacity compared to standard signal headers. Consider the straight vs. right-angle orientation based on spatial constraints. Verify thermal management needs given the 105°C maximum operating temperature.

Part Context

This part belongs to the Minitek Pwr 3.0 family, which provides robust power solutions for board-to-board and wire-to-board connections. The series offers various pin counts and orientations, all sharing common mechanical and electrical characteristics like the 3.00 mm pitch and LCP insulation material.

Replacement Considerations

Direct substitutes include other Amphenol FCI Minitek Pwr 3.0 headers with identical 6-position, right-angle, through-hole specifications. Cross-reference with equivalent parts from other manufacturers offering 3.00 mm pitch power headers if availability is an issue.
