Product Detailed Parameters
- Description：CONN HEADER R/A 12POS 3MM
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：12
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.285" (7.25mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

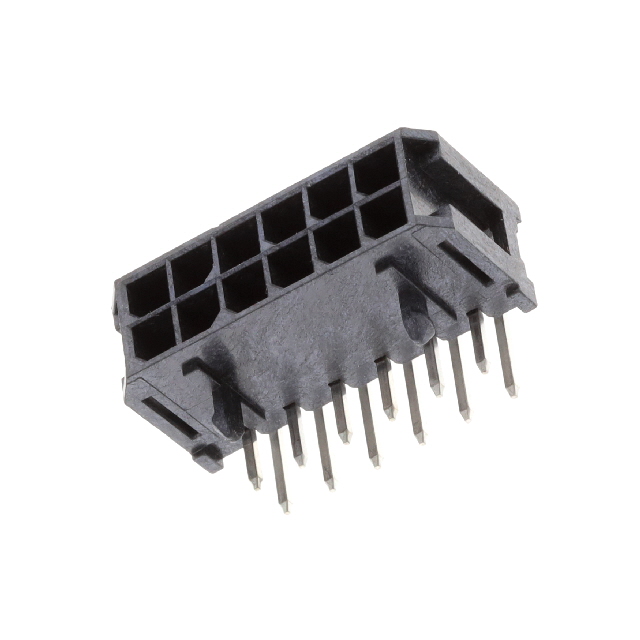

The Amphenol ICC (FCI) 10127720-121LF is a Minitek Pwr 3.0 series power header connector designed for wire-to-board applications. It features a dual-row configuration with 12 positions and a 3.00mm pitch. The component utilizes through-hole, right-angle mounting with solder pin termination. Rated for 600VAC/DC, it employs copper alloy contacts with tin plating housed in black liquid crystal polymer (LCP).
Feature Summary
- Dual-row design supporting up to 24 power circuits or 12 signal circuits.
- Right-angle through-hole mounting facilitates compact board integration.
- Housing constructed from black LCP material rated UL94 V-0.
- Tin-plated copper alloy contacts ensure reliable conductivity.
Applications
- Wire-to-board power distribution systems.
- Industrial equipment interconnects.
- Commercial electronic device power headers.
Procurement Notes
Verify the specific suffix 'LF' confirms lead-free compliance and RoHS status against current manufacturer declarations. Confirm that the 12-position count matches the required circuit density. Ensure the right-angle orientation aligns with the PCB layout constraints. Cross-reference the base part number 10127720 for compatible mating receptacle housings to guarantee mechanical fit.
Selection Notes
Select this model when a 3.00mm pitch power header is required for wire-to-board connections. The dual-row format supports higher current capacity compared to single-row alternatives. Verify that the 600VAC/DC rating meets the system voltage requirements. Consider the right-angle form factor for space-constrained vertical mounting scenarios.
Part Context
This component belongs to the Minitek Pwr 3.0 family, which provides robust power solutions for industrial and commercial markets. The series offers various position counts and mounting styles. The 10127720 base number indicates a standard power header configuration within the Amphenol ICC portfolio.
Replacement Considerations
Compatible mating receptacles include housing part numbers such as 10127716-12LF. Verify mechanical compatibility before substituting components from other manufacturers.
