Product Detailed Parameters
- Description：CONN HEADER R/A 16POS 3MM
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：16
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.285" (7.25mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

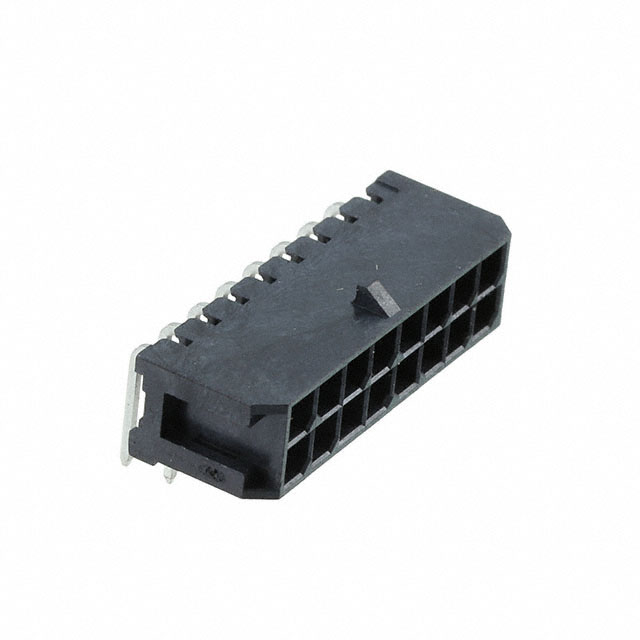

The Amphenol ICC (FCI) 10127720-161LF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a right-angle through-hole mounting style with a 3.00mm (0.118 inch) mating pitch and 16 positions arranged in two rows. The connector utilizes copper alloy contacts with tin plating, housed in black liquid crystal polymer (LCP). Rated for 600VAC/DC, it includes a four-wall shroud and board lock features to ensure secure assembly.
Feature Summary
- Right-angle through-hole design facilitates compact board layout integration
- Four-wall shrouded housing provides comprehensive contact protection
- Board lock mechanism ensures stable mechanical retention during operation
Applications
- Power distribution in server and storage equipment
- Industrial control system interconnections
- Communication infrastructure power headers
Procurement Notes
Verify the specific ordering suffix to confirm the exact pin count, row configuration, and termination type required for the target application. Ensure compatibility with mating cable assemblies regarding current capacity and insulation thickness. Cross-reference the manufacturer's latest datasheet to confirm material specifications and compliance status before finalizing procurement orders.
Selection Notes
Select this component when a right-angle power header with a 3.00mm pitch is required for high-current applications up to 600V. Consider the Minitek Pwr 3.0 series for its robust LCP insulation and reliable tin-plated contacts. Evaluate the straight version (10127721-161LF) if a vertical orientation better suits the mechanical constraints of the enclosure design.
Part Context
This part belongs to the Minitek Pwr 3.0 family, a specialized line of power connectors from Amphenol ICC (FCI). The series is engineered for demanding environments requiring high reliability and efficient power transmission. The 10127720 base number indicates the specific housing geometry and shroud configuration shared across various position counts within the product line.
Replacement Considerations
The 10127720-161GLF serves as a direct substitute variant within the same series, offering identical electrical and mechanical specifications. Verify that any alternative replacement maintains the 3.00mm pitch and right-angle form factor to ensure proper fitment on existing PCB layouts.
