10127720-201LF

Overview

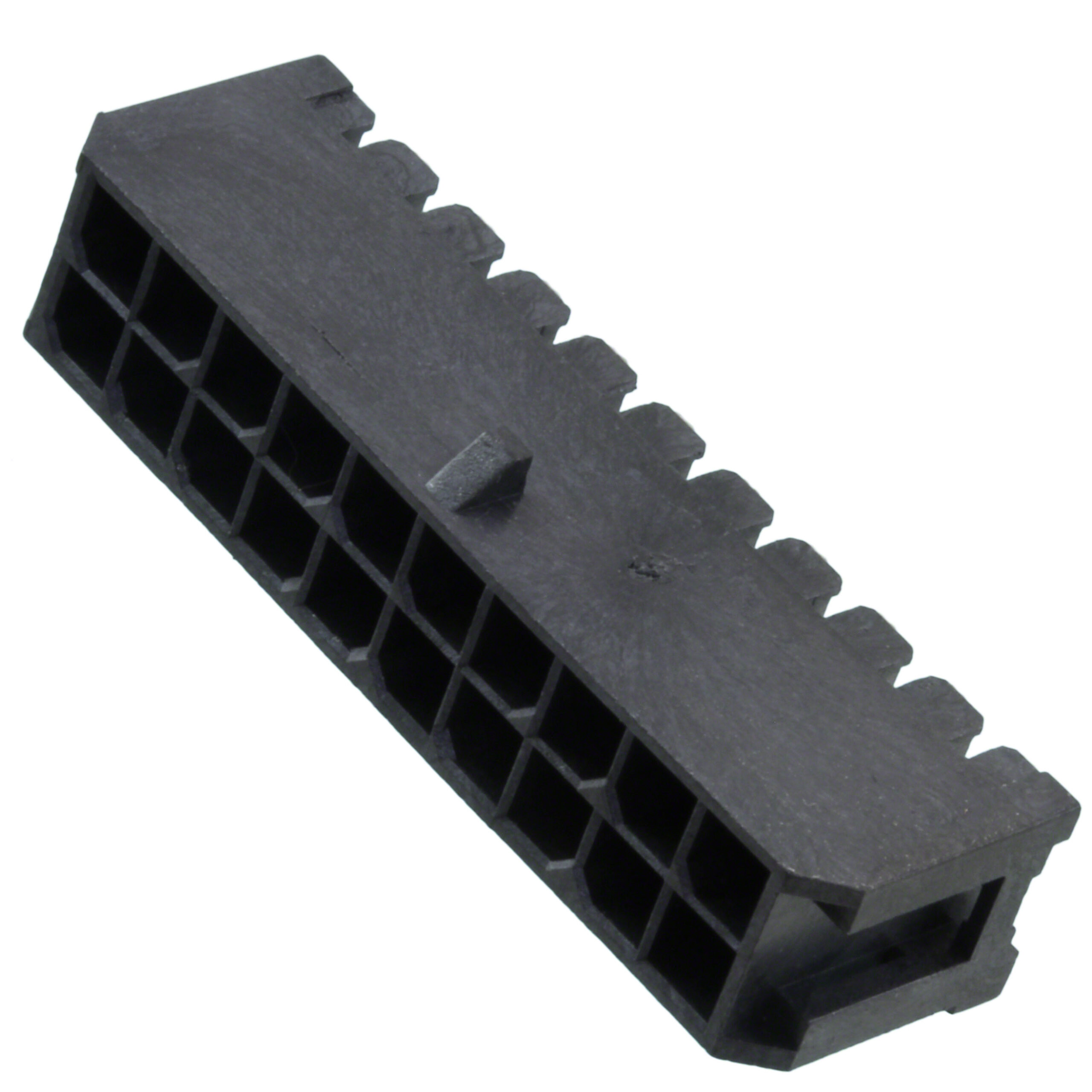

The Amphenol ICC (FCI) part number 10127720-201LF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a dual-row configuration with 20 positions and a 3.00mm pitch. The connector utilizes through-hole, right-angle termination with solder pin contacts. Constructed with liquid crystal polymer insulation in black, it supports a rated voltage of 600VAC/DC and operates within a temperature range of -40°C to 105°C. The housing includes a four-wall shield and board lock features.

Feature Summary

• Dual-row right-angle header design for high-density power distribution
• Four-wall shielded housing provides enhanced environmental protection
• Board lock mechanism ensures secure mechanical retention on the PCB
• Liquid crystal polymer insulation meets UL94 V-0 flammability standards

Applications

• Industrial control systems requiring robust power connections
• Server and storage infrastructure power distribution units
• Telecommunications equipment power interfaces
• Automotive electronics power management modules

Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating and packaging details. Ensure the selected variant matches the required termination style and row configuration for the target assembly. Cross-reference the basic product number with official replacement guides to identify any updated superseding part numbers before finalizing procurement orders.

Selection Notes

Select this component when a right-angle, dual-row power header with shielding is required for 3.00mm pitch applications. Confirm that the PCB layout accommodates the through-hole footprint and right-angle orientation. Evaluate the current rating requirements against the specific wire gauge being utilized, as ratings vary by conductor size. Ensure compatibility with mating cables and verify space constraints for the insulated height.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, which offers various configurations including vertical and right-angle headers, sockets, and housings. The series is engineered for high-current applications, providing reliable performance in demanding environments. Related components in this ecosystem include matching cable assemblies and complementary housing options for complete interconnect solutions.

Replacement Considerations

Consult official Amphenol documentation for verified substitute part numbers. Check for direct replacements within the same Minitek Pwr 3.0 series that may offer updated packaging or minor specification adjustments.
