Product Detailed Parameters
- Description：CONN HEADER R/A 24POS 3MM
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.285" (7.25mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

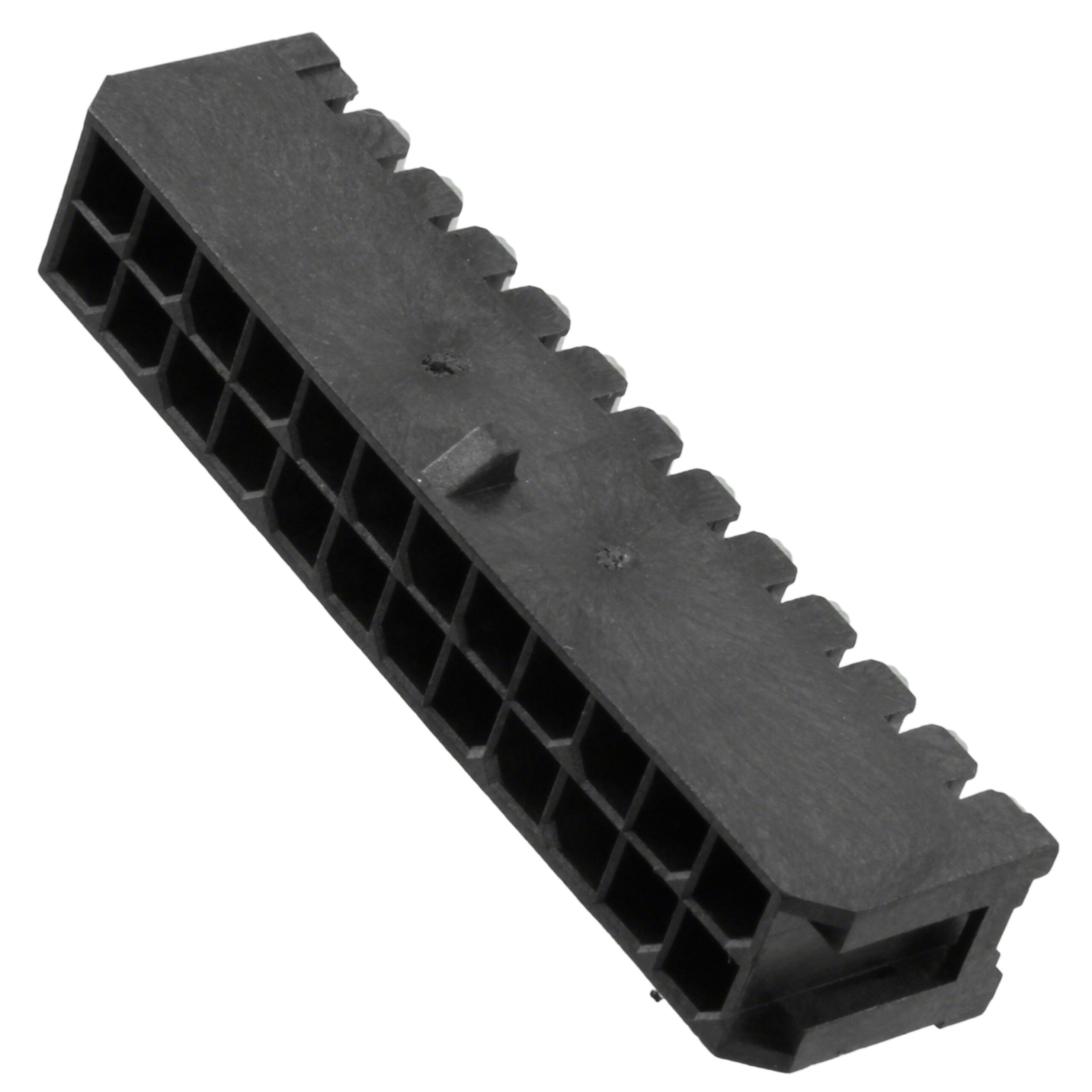

The Amphenol ICC (FCI) 10127720-241LF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a 24-position, dual-row configuration with a 0.118-inch (3.00mm) mating pitch and row spacing. The connector utilizes square male pin contacts made of copper alloy, terminated via through-hole soldering. Insulation is provided by black liquid crystal polymer (LCP), rated UL94 V-0, supporting a maximum voltage of 600V AC/DC. The assembly includes a four-wall shielded shroud and slide-lock fastening mechanism.
Feature Summary
- High current capacity within the Minitek Pwr 3.0 family
- Robust four-wall shielded shroud design
- Slide-lock fastening system for secure attachment
Applications
- Server and storage equipment power distribution
- Telecommunications infrastructure power modules
- Industrial control system wiring harnesses
Procurement Notes
Verify that the specific part number suffix matches the required contact plating and packaging format. Confirm that the housing material and terminal finish align with the intended environmental operating conditions. Ensure compatibility with corresponding socket connectors in the same series before finalizing procurement orders.
Selection Notes
Select this component when a high-current, right-angle through-hole header is required for power delivery. The 3.00mm pitch allows for larger gauge wires compared to signal connectors. Consider the mechanical retention provided by the slide-lock feature if vibration resistance is a priority in the target application environment.
Part Context
This connector belongs to the Minitek Pwr 3.0 product line, which is engineered for demanding power management applications. The series offers various position counts and mounting styles to support diverse board layout requirements while maintaining consistent electrical performance standards across the family.
Replacement Considerations
Direct substitutes include other 24-position, dual-row headers with identical 3.00mm pitch and through-hole termination. Verify that any alternative maintains the same shroud height and locking mechanism geometry to ensure proper mating with existing cable assemblies.
