Product Detailed Parameters
- Description：CONN HEADER R/A 24POS 3MM
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole, Right Angle
- Termination：Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.285" (7.25mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：-
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

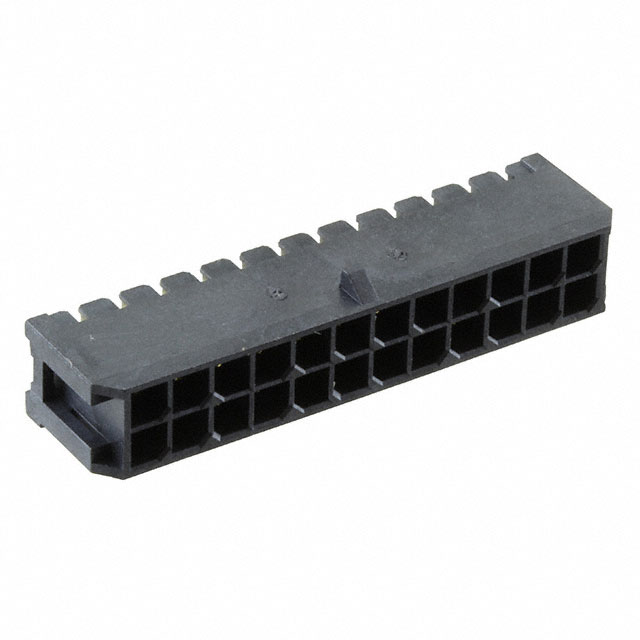

The Amphenol ICC (FCI) part number 10127720-242LF is a Minitek Pwr 3.0 series power header connector designed for board-to-cable or wire applications. It features a 24-position, dual-row configuration with a 3.00mm pitch and right-angle through-hole mounting. The contacts are square-shaped male pins with tin plating, housed in black liquid crystal polymer (LCP) insulation rated UL94 V-0. This component supports a maximum voltage of 600V AC/DC and operates within a temperature range of -40°C to 105°C.
Feature Summary
- Dual-row right-angle header design for compact power distribution
- Tin-plated square contact pins for reliable electrical connection
- High-temperature LCP insulation with UL94 V-0 flammability rating
- Board lock and shrouded four-wall housing for secure assembly
Applications
- Server and storage system power distribution
- Communication equipment internal wiring
- Industrial control board connections
Procurement Notes
Verify the specific ordering suffix against the manufacturer's current datasheet to ensure compliance with RoHS and halogen-free requirements. Confirm that the tin-plated contact finish matches the application's corrosion resistance needs. Check for any recent Product Change Notifications regarding material substitutions or manufacturing location updates before finalizing procurement orders.
Selection Notes
Select this connector when a high-current power solution with a 3.00mm pitch is required for right-angle PCB mounting. Ensure the mating cable gauge aligns with the connector's current carrying capacity ratings. Verify that the board layout accommodates the specified insulation height and row spacing for proper clearance and mechanical stability during operation.
Part Context
This component belongs to the Minitek Pwr 3.0 family, a line of power connectors from Amphenol ICC (FCI). The series is engineered for robust performance in demanding environments, offering various pin counts and configurations. The 10127720 base number indicates a standard header format within this extensive portfolio of interconnect solutions.
Replacement Considerations
Direct substitutes include other 24-position, 3.00mm pitch right-angle headers from compatible manufacturers. Cross-reference dimensions such as insulation height and contact length to ensure mechanical fit. Verify that alternative parts meet the same UL94 V-0 rating and 600V voltage specification.
