Product Detailed Parameters
- Description：CONN PWR3.0 VT HEADER
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：4
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.433" (11.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

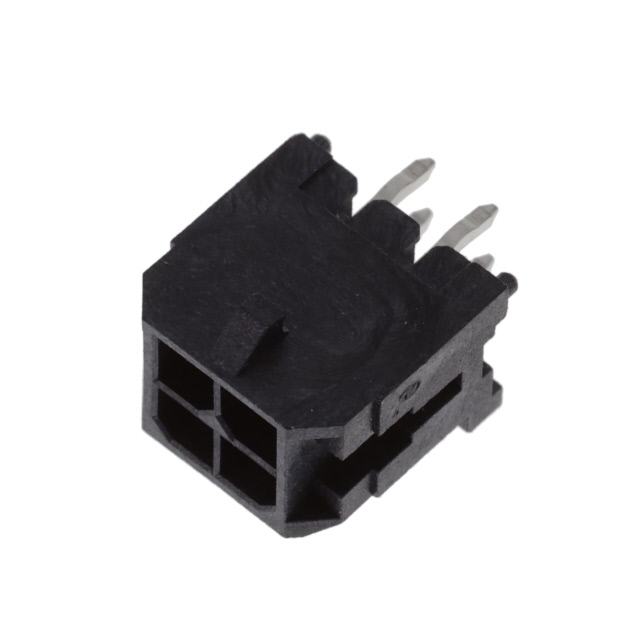

The Amphenol ICC (FCI) 10127721-041GLF is a Minitek Pwr 3.0 series power connector header designed for board-to-board applications. It features a dual-row, vertical through-hole mounting style with four male pin contacts. The connector utilizes a 3.00mm pitch and offers a rated voltage of 600VAC/DC. Constructed with liquid crystal polymer insulation in black, it supports an operating temperature range from -40°C to +105°C. The unit includes gold-plated copper alloy contacts and meets UL94 V-0 flammability standards.
Feature Summary
- Dual-row vertical through-hole header configuration
- Gold-plated copper alloy contact system
- Liquid crystal polymer insulation material
- High voltage rating capability
Applications
- Power distribution on printed circuit boards
- Industrial control systems
- Telecommunications equipment
- Server and storage device interconnects
Procurement Notes
Verify the specific suffix GLF indicates lead-free compliance and tin/gold plating options as per the manufacturer's current datasheet. Confirm that the 4-position variant matches the required mechanical footprint and mating height for the target assembly. Ensure compatibility with standard reflow soldering profiles for through-hole components.
Selection Notes
Select this component when a compact, high-current power connection is required in a vertical orientation. The 3.00mm pitch allows for higher current capacity compared to smaller signal connectors. Consider the gold plating for corrosion resistance and reliable conductivity in demanding environments. Verify that the 600VAC rating aligns with the system's electrical requirements.
Part Context
This part belongs to the Minitek Pwr 3.0 family, a line of power connectors by Amphenol ICC (FCI). The series is engineered for robust power delivery in space-constrained designs. The 10127721 prefix denotes a dual-row vertical header, while the numeric suffix specifies the position count. This specific model represents the smallest variant in the 4-position configuration within this series.
Replacement Considerations
Direct substitutes include other 4-position, 3.00mm pitch, dual-row vertical headers from compatible manufacturers. Ensure replacement parts match the 600VAC rating, LCP insulation material, and UL94 V-0 flammability class. Verify identical mounting hole dimensions and contact geometry for seamless integration.
