Product Detailed Parameters
- Description：CONN PWR3.0 VT HEADER
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.433" (11.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

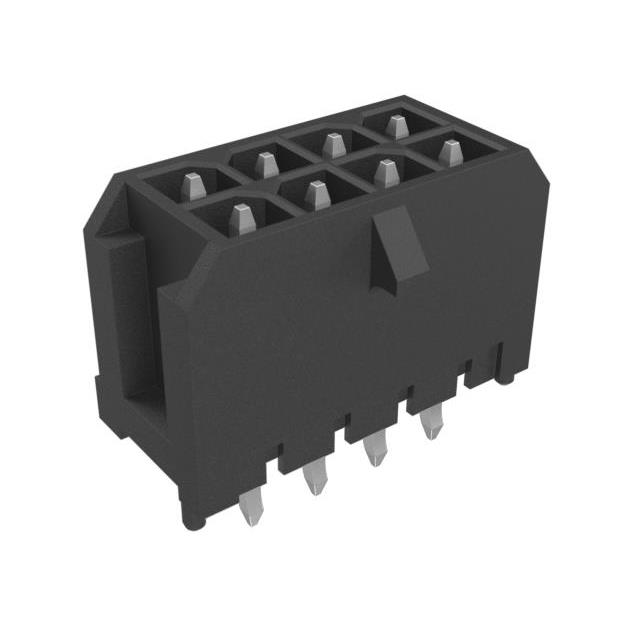

The 10127721-081GLF is a Minitek Pwr 3.0 series power header manufactured by Amphenol ICC (FCI). It features an 8-position, dual-row configuration with a 3.00mm pitch. The connector utilizes gold-plated copper alloy contacts and a black Liquid Crystal Polymer (LCP) housing. Designed for vertical through-hole mounting, it supports a rated voltage of 600VAC/DC and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Dual-row power header design for high-density board-to-cable connections
- Gold contact plating ensures reliable conductivity and corrosion resistance
- LCP insulation material provides thermal stability and UL94 V-0 flammability rating
- Vertical through-hole termination facilitates secure PCB integration
Applications
- Power distribution in industrial control systems
- Server and storage equipment power interfaces
- Telecommunications infrastructure hardware
- High-voltage consumer electronics assemblies
Procurement Notes
Verify the specific suffix GLF indicates gold plating on mating surfaces. Confirm that the 8-position count matches the target circuit requirements. Ensure the vertical orientation aligns with the mechanical layout constraints of the host assembly. Cross-reference the LCP material properties against environmental exposure conditions.
Selection Notes
Select this component when a robust, high-current power interface is required. The 3.00mm pitch allows for substantial conductor spacing compared to signal headers. The gold finish is suitable for environments requiring long-term reliability without tin whisker concerns associated with tin-only finishes.
Part Context
This part belongs to the Minitek Pwr 3.0 family, designed for power-to-board applications. It complements other positions in the series, such as 10127721-161GLF, offering scalable connectivity options. The series emphasizes durability and high voltage handling for demanding electronic environments.
Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with existing mating cables or harnesses before considering alternative sources.
