10127721-081LF

$0.64

Description：CONN HEADER VERT 8POS 3MM
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:e0a62670a4f7 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 8POS 3MM
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：8
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Kinked Pin, Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.433" (11.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：Board Guide
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10127721-081LF

Overview

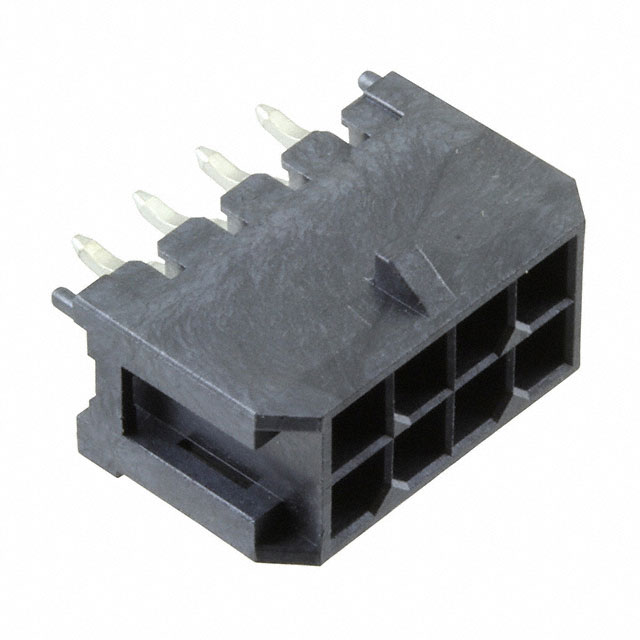

The Amphenol ICC (FCI) 10127721-081LF is a Minitek Pwr 3.0 series header connector designed for power-to-board applications. It features a vertical through-hole mounting style with a 3.00mm pitch and two rows of contacts. The component provides eight male pin positions, utilizing copper alloy contacts with tin plating to ensure reliable electrical connections. Rated for 600VAC/DC and operating within a temperature range of -40°C to +105°C, it incorporates four-wall shielding and board guide rails for secure installation.

Feature Summary

Vertical through-hole design for direct PCB integration
Four-wall shielding structure for enhanced protection
Board guide rails for precise alignment during assembly

Applications

Power distribution in server systems
Storage device internal connectivity
Communication equipment power interfaces

Procurement Notes

Verify the specific contact plating configuration against project requirements, as datasheets may list variations between tin and gold finishes for this part number. Confirm that the vertical orientation and 3.00mm pitch align with the target PCB footprint. Ensure the four-wall shielding requirement is met by the system enclosure design to prevent interference.

Selection Notes

Select this component when a robust, shielded power header is required for high-current applications. The 3.00mm pitch allows for higher current capacity compared to smaller signal connectors. Consider the vertical form factor for space-constrained boards where side-entry headers are not feasible. Verify thermal management needs given the 105°C maximum operating temperature.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, engineered for demanding power delivery environments. The series emphasizes durability and signal integrity in compact spaces. Amphenol ICC (FCI) designs these components to withstand harsh conditions, including vibration and high temperatures, ensuring long-term reliability in industrial and data center infrastructure.
