Product Detailed Parameters
- Description：CONN HEADER VERT 8POS 3MM
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.433" (11.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：Flash
- Contact Finish - Post：Gold
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

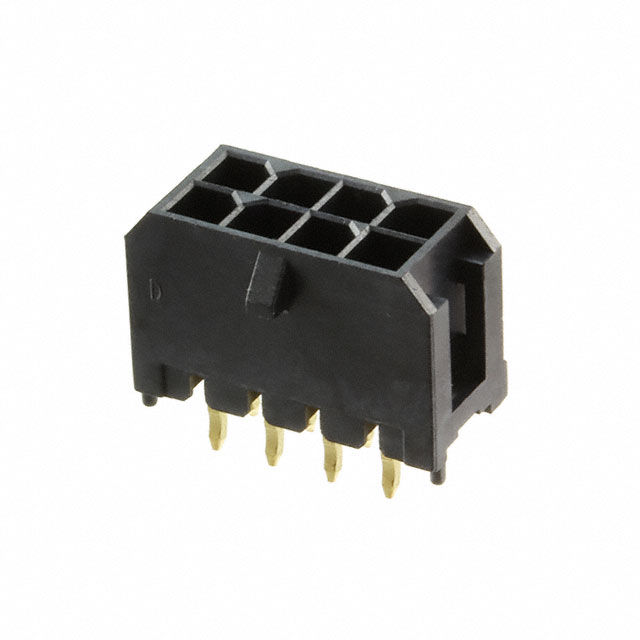

The Amphenol ICC (FCI) 10127721-082LF is a Minitek Pwr Hybrid 3.0 header connector designed for power and signal applications. It features 8 positions with a 3.00mm pitch and supports current ratings up to 5A. The component utilizes through-hole solder pin termination and operates within a temperature range of -40°C to +105°C.
Feature Summary
- Hybrid design integrating power and signal connections in a single interface
- Minitek Pwr Hybrid 3.0 series construction for reliable electrical performance
- Through-hole mounting style ensuring secure board attachment
Applications
- Power distribution modules
- Signal processing units
- Industrial control systems
Procurement Notes
Verify the specific contact plating and insulation material against project requirements before ordering. Confirm that the 3.00mm pitch aligns with the target PCB footprint. Ensure the 5A current rating meets the circuit load demands. Check for RoHS compliance status if required by regulatory standards.
Selection Notes
Select this part when a compact hybrid solution is needed for combined power and signal transmission. The 3.00mm pitch offers a balance between density and spacing. Consider the through-hole installation method for robust mechanical stability in industrial environments requiring high reliability.
Part Context
This component belongs to the Minitek Pwr Hybrid 3.0 family, which provides integrated connectivity solutions. The series is engineered to support both high-current power delivery and data signal integrity within a unified housing structure, simplifying assembly processes for complex electronic assemblies.
