Product Detailed Parameters

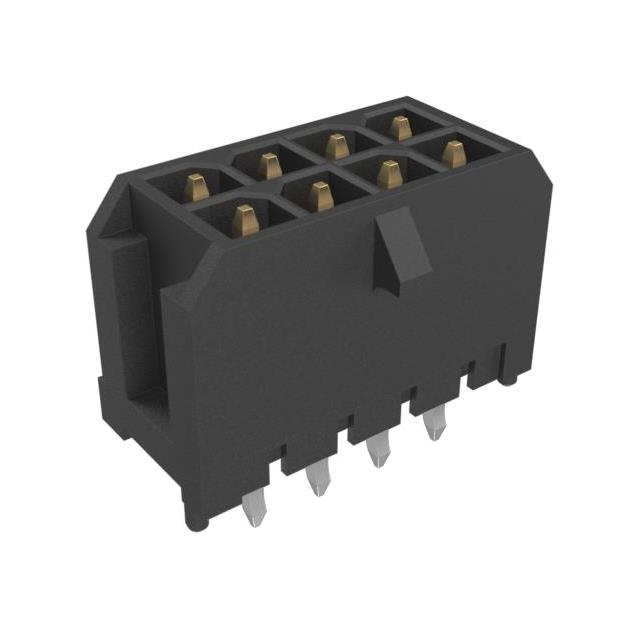

- Description：10127721-084GLF-MTK 3.0 DR 8P VT
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：8
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.433" (11.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：30.0µin (0.76µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10127721-084GLF is a Minitek Power3.0 series power connector header designed for board-to-board applications. It features an 8-position configuration with male pin contacts arranged in a dual-row layout. The component utilizes a 3.00mm pitch and operates at a rated voltage of 600VAC/DC. Constructed with liquid crystal polymer insulation, it supports through-hole mounting and solder termination. The unit includes a four-wall shroud and locking slide mechanism for secure engagement.
Feature Summary
- Dual-row power header design with male pins for robust electrical connections
- Four-wall shrouded housing provides mechanical protection and alignment
- Locking slide mechanism ensures secure mating retention
- Liquid crystal polymer insulation offers high thermal stability
Applications
- Industrial control systems requiring high current distribution
- Power supply units and battery management modules
- Factory automation equipment and heavy machinery interfaces
- Alternative energy generation and hybrid drive systems
Procurement Notes
Verify the specific contact plating thickness and material composition against the official datasheet before procurement. Confirm that the ordering suffix aligns with the required gold plating specifications for the intended application environment. Ensure compatibility with mating sockets within the Minitek Power3.0 family to guarantee proper interface performance.
Selection Notes
Select this component when a vertical, through-hole power header with eight positions is required. The 3.00mm pitch accommodates higher current loads compared to smaller pitches. Verify that the operating temperature range of -40°C to +105°C meets the environmental demands of the target system.
Part Context
This part belongs to the Minitek Power3.0 series by Amphenol ICC (FCI), a line specialized for power distribution in compact spaces. The series is engineered for industrial and automotive environments, offering reliable connections under vibration and thermal stress. It complements other headers and housings within the same product family.
Replacement Considerations
Compatible substitutes include other 8-position Minitek Power3.0 headers from Amphenol ICC (FCI). Verify that alternative parts maintain the same 3.00mm pitch, dual-row configuration, and through-hole mounting style to ensure mechanical fit.
