Product Detailed Parameters

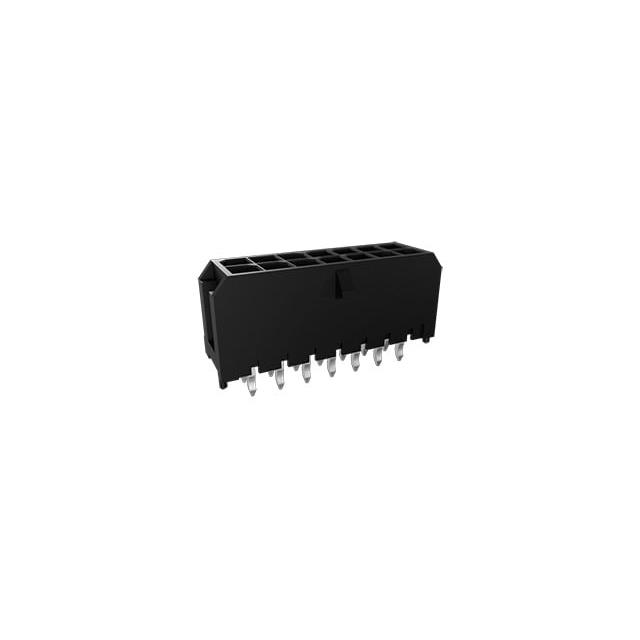

- Description：10127721-101GLF-MINITEK PWR3.0 V
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：10
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.390" (9.91mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：-
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：5.5A
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10127721-101GLF is a Minitek Pwr 3.0 series power header connector designed for board-to-board applications. It features a 10-position, dual-row configuration with a 3.00mm pitch and vertical through-hole termination. The contacts are gold-plated copper alloy pins rated for 600VAC/DC and 8.5A current. Constructed from black liquid crystal polymer (LCP), the housing meets UL94 V-0 flammability standards and operates within a -40°C to +105°C temperature range.
Feature Summary
- Dual-row vertical header design for high-density power distribution
- Gold-plated contact surfaces ensure reliable conductivity and corrosion resistance
- Liquid crystal polymer insulation provides thermal stability and flame retardancy
Applications
- Power distribution in industrial equipment
- Server and storage system power boards
- Telecommunications infrastructure hardware
Procurement Notes
Verify the specific suffix code against official manufacturer documentation to confirm plating thickness and material specifications. Ensure compatibility with mating receptacles within the same Minitek Pwr 3.0 family. Confirm that the vertical mounting style aligns with the target PCB assembly requirements before finalizing procurement orders.
Selection Notes
Select this component when a robust, high-current vertical interconnect is required for power delivery. The 3.00mm pitch accommodates substantial wire gauges compared to signal connectors. Verify that the 8.5A rating per contact satisfies the circuit load requirements and that the LCP insulation withstands the peak operating temperatures of the application environment.
Part Context
This part belongs to the Minitek Pwr 3.0 product line by Amphenol ICC (FCI). The series specializes in power-to-board connections utilizing a 3.00mm spacing. These headers are engineered for durability in demanding environments, offering a balance of electrical performance and mechanical stability for critical power routing tasks.
Replacement Considerations
Compatible substitutes include other Minitek Pwr 3.0 series headers with matching 10-position, dual-row, vertical configurations. Ensure any replacement maintains the 3.00mm pitch and compatible contact geometry.
