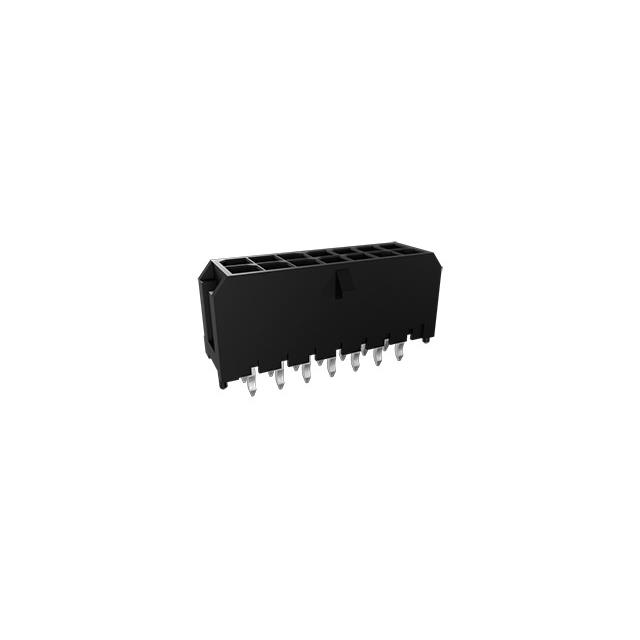

- Description：10127721-206GLF-MTK 3.0 20P DR V
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：20
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.433" (11.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Liquid Crystal Polymer (LCP), Halogen Free
- Features：Board Guide
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview
The Amphenol ICC (FCI) 10127721-206GLF is a Minitek Pwr 3.0 series power header connector designed for through-hole mounting. It features a dual-row configuration with 20 positions and a 3.00mm mating pitch. The contacts are gold-plated copper alloy pins, rated for 600VAC and 8.5A current. Constructed with black Liquid Crystal Polymer (LCP), it operates within a -40°C to +105°C range and includes board lock features.
Feature Summary
- Dual-row vertical through-hole header design
- Gold-plated contact surfaces for reliable conductivity
- High-temperature LCP insulation material
- Integrated board locking mechanism
Applications
- Power distribution in industrial equipment
- Server and storage system power interfaces
- Telecommunications infrastructure connections
- Heavy machinery control panels
Procurement Notes
Verify the specific suffix GLF indicates gold plating on mating contacts as per official datasheets. Confirm that the 20-position variant matches the required PCB footprint dimensions. Ensure compatibility with mating receptacles from the same Minitek Pwr 3.0 family to guarantee proper alignment and electrical performance.
Selection Notes
Select this component when high current capacity and thermal stability are required for vertical board-to-board or cable connections. The gold plating offers superior corrosion resistance compared to tin variants. Consider the 3.00mm pitch for spacing requirements and verify that the 600VAC rating meets the system's voltage isolation needs.
Part Context
This part belongs to the Minitek Pwr 3.0 family, a line of robust power connectors by Amphenol ICC (FCI). The series is engineered for demanding environments, offering various pin counts and termination styles. The 10127721 prefix denotes a dual-row vertical header configuration within this standardized product ecosystem.
