10127721-221GLF

Overview

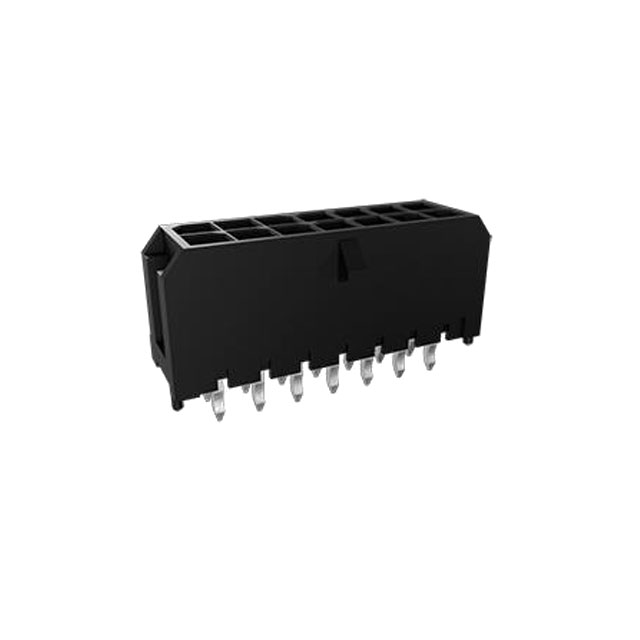

The Amphenol ICC (FCI) 10127721-221GLF is a Minitek Pwr 3.0 series power header connector designed for vertical through-hole mounting. It features a 22-position, dual-row configuration with a 0.118-inch (3.00mm) mating pitch and 0.118-inch row spacing. The connector utilizes square copper alloy contacts with tin plating, offering a contact length of 0.126 inches (3.20mm). Rated for 600VAC/DC, it operates within a temperature range of -40°C to 105°C. The housing is constructed from black thermoplastic material compliant with UL94 V-0 flammability standards.

Feature Summary

• Features a four-wall shielded housing design for enhanced structural integrity and protection.
• Incorporates a slide-lock fastening mechanism to secure the connection between header and mate.
• Utilizes knot pin solder termination for reliable through-hole board attachment.
• Complies with glow wire specification requirements for fire safety in electrical applications.

Applications

• Power distribution systems requiring robust vertical interconnects
• Industrial equipment control boards
• Server and storage device power interfaces

Procurement Notes

Verify that the specific order matches the 22-position vertical header configuration. Confirm that the tin-plated contact finish aligns with the intended mating environment requirements. Ensure the PCB layout accommodates the specified 3.00mm pitch and dual-row spacing. Check that the operating voltage does not exceed the 600VAC/DC rating. Validate that the thermal profile supports the -40°C to 105°C operational range.

Selection Notes

Select this component when a vertical, through-hole power header with a 3.00mm pitch is required. Choose this part over right-angle variants if space constraints allow for vertical orientation. Consider the tin plating for general-purpose applications rather than high-corrosion environments. Ensure the application demands a dual-row configuration to meet the 22-contact requirement.

Part Context

This connector belongs to the Minitek Pwr 3.0 series, which provides high-current power solutions for board-to-cable or board-to-board connections. The series is characterized by its 3.00mm pitch and robust construction suitable for demanding industrial and commercial environments. It complements other components in the FCI power connector portfolio designed for reliable energy transmission.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing mating connectors before considering alternative sources.
