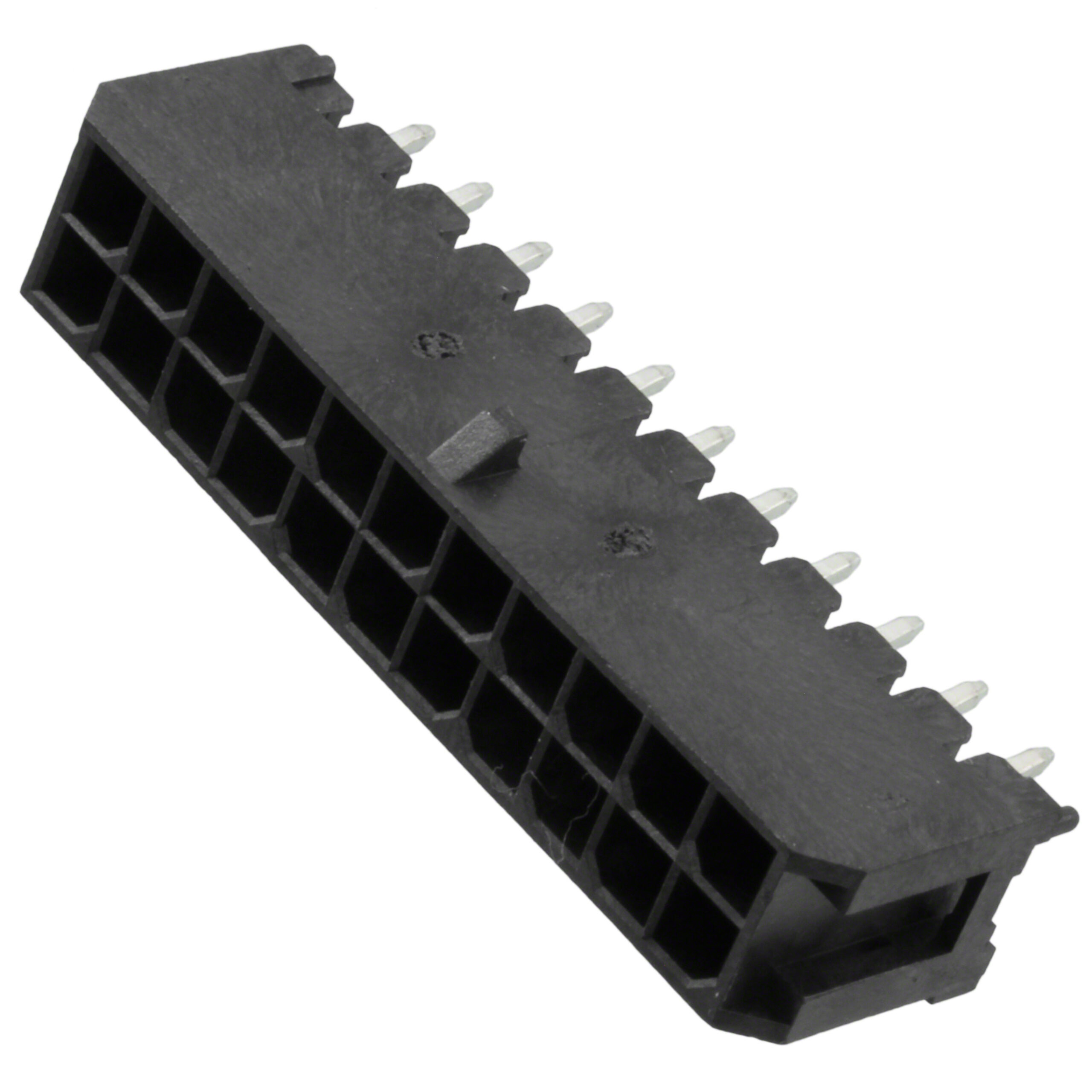

10127721-221LF

$1.28

Description：CONN HEADER VERT 22POS 3MM
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray

SKU:70fa6b5c1848 Category: Headers, Male Pins Brand: Amphenol ICC (FCI)

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CONN HEADER VERT 22POS 3MM
Series：Minitek® Pwr 3.0
Mfr：Amphenol ICC (FCI)
Package：Tray
Connector Type：Header
Contact Type：Male Pin
Pitch - Mating：0.118" (3.00mm)
Number of Positions：22
Number of Rows：2
Row Spacing - Mating：0.118" (3.00mm)
Number of Positions Loaded：All
Style：Board to Cable/Wire
Shrouding：Shrouded - 4 Wall
Mounting Type：Through Hole
Termination：Kinked Pin, Solder
Fastening Type：Locking Ramp
Contact Length - Mating：-
Contact Length - Post：0.126" (3.20mm)
Overall Contact Length：-
Insulation Height：0.433" (11.00mm)
Contact Shape：Square
Contact Finish - Mating：Tin
Contact Finish Thickness - Mating：100.0µin (2.54µm)
Contact Finish - Post：Tin
Contact Material：Copper Alloy
Insulation Material：Thermoplastic
Features：Board Guide
Operating Temperature：-40°C ~ 105°C
Ingress Protection：-
Material Flammability Rating：UL94 V-0
Insulation Color：Black
Current Rating (Amps)：Varies by Wire Gauge
Voltage Rating：600VAC/DC

Download product information

10127721-221LF

Overview

The Amphenol ICC (FCI) part number 10127721-221LF is a Minitek Pwr 3.0 series power header connector designed for board-to-board applications. It features a dual-row configuration with 22 positions and a 3.00mm pitch. The connector utilizes male pin contacts made of copper alloy, terminated via solder pins for through-hole mounting. Rated for 600VAC/DC and up to 8.5A current, it operates within a temperature range of -40°C to +105°C. The housing is constructed from black thermoplastic material compliant with UL94 V-0 flammability standards.

Feature Summary

Dual-row vertical header design with square contact shape
Through-hole solder termination for secure PCB mounting
Four-wall shielding enclosure for enhanced protection
Compatible with locking pin slide fastening mechanism

Applications

Power distribution in server systems
Storage device internal connections
Telecommunications equipment power interfaces
Industrial control board interconnects

Procurement Notes

Verify the specific ordering suffix against official Amphenol documentation to confirm plating type and packaging format. Confirm that the required mating shell or housing is sourced separately if not included in the assembly kit. Ensure the procurement channel provides valid traceability records for industrial-grade components.

Selection Notes

Select this component when a high-current vertical power interface is required. Verify that the mating connector matches the 3.00mm pitch and dual-row geometry. Check that the PCB layout accommodates the through-hole solder pin dimensions and the specified insulation height constraints.

Part Context

This connector belongs to the Minitek Pwr 3.0 family, engineered for robust power transmission in dense electronic assemblies. The series supports various position counts and termination styles, providing standardized solutions for power delivery in demanding environments across computing and communication sectors.
