Product Detailed Parameters
- Description：CONN PWR3.0 VT HEADER
- Series：Minitek® Pwr 3.0
- Mfr：Amphenol ICC (FCI)
- Package：Tray,Tray
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.118" (3.00mm)
- Number of Positions：24
- Number of Rows：2
- Row Spacing - Mating：0.118" (3.00mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Kinked Pin, Solder
- Fastening Type：Locking Ramp
- Contact Length - Mating：-
- Contact Length - Post：0.126" (3.20mm)
- Overall Contact Length：-
- Insulation Height：0.433" (11.00mm)
- Contact Shape：Square
- Contact Finish - Mating：Tin
- Contact Finish Thickness - Mating：100.0µin (2.54µm)
- Contact Finish - Post：Tin
- Contact Material：Copper Alloy
- Insulation Material：Thermoplastic
- Features：Board Guide, Glow Wire Compliant
- Operating Temperature：-40°C ~ 105°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：Varies by Wire Gauge
- Voltage Rating：600VAC/DC
Download product information
Overview

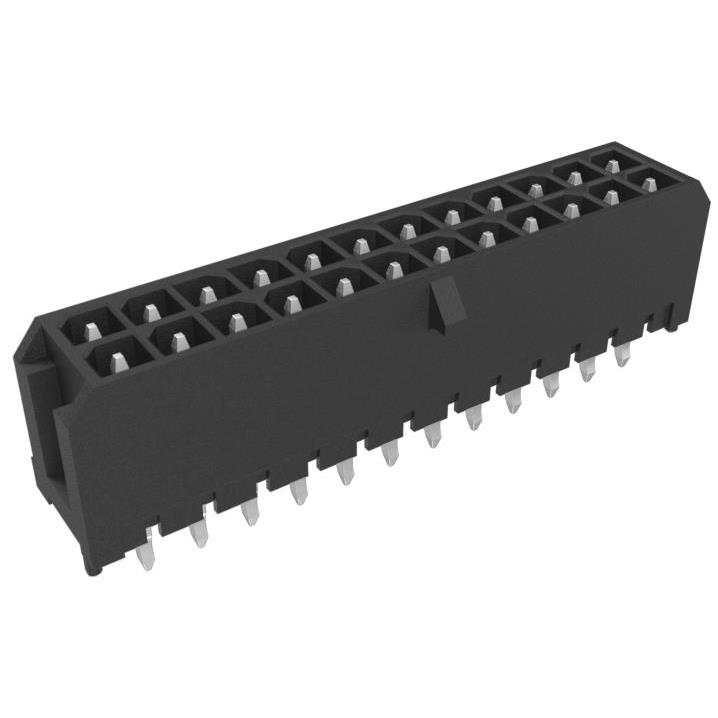

The Amphenol ICC (FCI) 10127721-241GLF is a Minitek Power 3.0 series power-to-board header connector designed for high-current applications. It features a double-row, vertical through-hole configuration with 24 positions and a 3 mm pitch. The contacts are gold-plated copper pins rated for 8.5 A at 600 VAC. Constructed with black Liquid Crystal Polymer (LCP) insulation, it operates within a temperature range of -40°C to +105°C and provides an insulation resistance of 1 GOhms.
Feature Summary
- Double-row vertical design for compact power distribution
- Gold-plated copper contacts ensure reliable conductivity
- High-temperature LCP housing for thermal stability
Applications
- Industrial power distribution systems
- Data communication equipment
- Server and storage device power interfaces
Procurement Notes
Verify the specific suffix 'GLF' confirms lead-free compliance and gold plating thickness against official datasheets. Confirm availability status as distribution channels may vary. Ensure the 24-position count matches the target PCB footprint requirements before finalizing procurement orders.
Selection Notes
Select this component when a 3 mm pitch double-row header is required for power delivery. The 8.5 A current rating suits moderate power loads. Verify that the vertical mounting style fits the enclosure constraints and that the LCP material compatibility meets the assembly soldering profile specifications.
Part Context
This part belongs to the Minitek Pwr 3.0 family, a specialized line of power connectors from Amphenol FCI. The series focuses on robust power-to-board connections using a standardized 3 mm spacing. This specific model represents a 24-pin variant within that structured portfolio.
Replacement Considerations
Direct substitutes include other 24-position, 3 mm pitch, double-row headers from the same Minitek Pwr 3.0 series with identical pin counts and plating. Cross-brand replacements require matching the 3 mm row and contact spacing alongside the 8.5 A current capacity.
